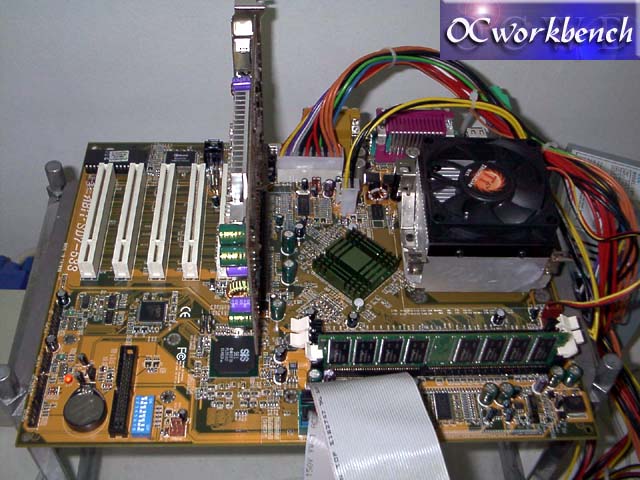

ABIT SD7-533 (1)
Overclocker 8 Feb 2001

If I remember correctly, the last SiS board ABIT manufactured was a number of years ago. It looks like ABIT is back in business and must have discovered that SiS645 chipset is cheap performance winner for the Pentium 4.

The SiS 645 chipset brings down the costs of mainboards as it has one of the the best price / performance ratio to date. The SiS645 chipset needs no introduction as it has proven itself in most previews done at various websites. It is a one of the strongest contender among the P4 DDR chipsets with its support of DDR266 and DDR333 DDR RAM. This definitely makes it one of the most attractive alternative to other chipsets that only supports DDR266.

So will ABIT SD7-533 makes a difference as compared to the rest of the boards using the same chipset? How does it compare ? Before that let's take a look at the specifications :

CPU
1.Support for Intel Pentium 4 Socket 478 processors with 400MHz (100MHz QDR)CPU Front Side Bus
Chipset
1.SIS645/961
2.Supports Ultra DMA 33/66/100 IDE protocol
3.Supports Advanced Configuration and Power Management Interface (ACPI)
4.Accelerated Graphics Port connector supports
AGP 2X(3.3V)and 4X(1.5V)mode (Sideband) device
6.Supports200/266/333MHz (100/133/166MHz Double Data Rate) Memory Bus Settings
Memory
1.Three 184-pin DIMM sockets support PC1600/PC2100/PC2700 DDR SDRAM module
2.Supports up to 2GB DRAMs for unbuffered DDR PC2700 modules
3.Supports up to 3GB DRAMs for unbuffered DDR PC1600/PC2100 modules
Audio(Optional)
1.C-Media 8738 /PCI-6CH PCI-Based HRTF 3 Dextension Positional Audio Chip
2.Support 6CH DAC for AC3 5.1 CH purpose
Professional digital audio interface supporting 24-bit SPDIF IN and OUT
System BIOS
1.SoftMenuIII Technology to set CPU parameters
2.Supports Plug-and-Play (PNP)
3.Supports Advanced Configuration Power Interface (ACPI)
4.Supports Desktop Management Interface (DMI)
5.Write-Protect Anti-Virus function by AWARD BIOS
Multi I/O Functions
1.Two Channels of Bus Master IDE Ports supporting up to four Ultra DMA 33/66/100 devices
2.Audio connector (AUX-IN, CD-IN, Line-in, Line-out, Mic-in, and Game Port)
Miscellaneous
1.ATX form factor
2.1 AGP slot, 5 PCI slots
3.Hardware monitoring - Including Fan speed, Voltages, System environment temperature
4.Built-in Wake on LAN header
5.Built-in Wake on Ring header
6.Built-in IrDA TX/RX header
