ASUS A7V8X KT400 Gallery (2)
Overclocker 16 Aug 2002

Detail board layout

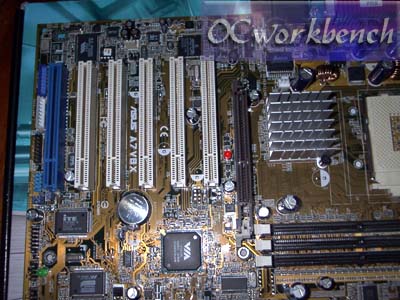

6 PCI and 1 AGP Slot. On the sides are the Firewire connectors

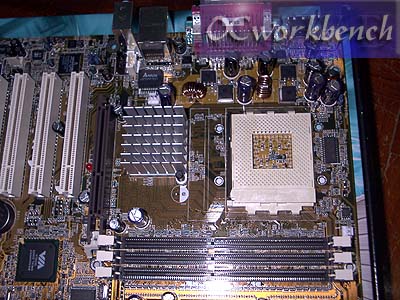

Socket A with ample space around it

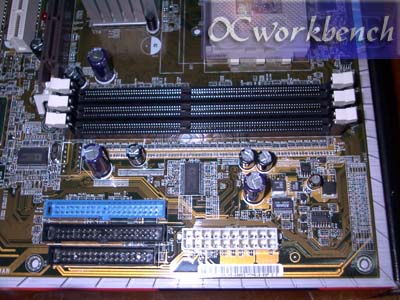

3 DIMM Slots up to a max of 3 GB unbuffered PC2700/2100/1600 non-ECC SDRAM IDE connectors ATA-133 and floppy connector. Power connector

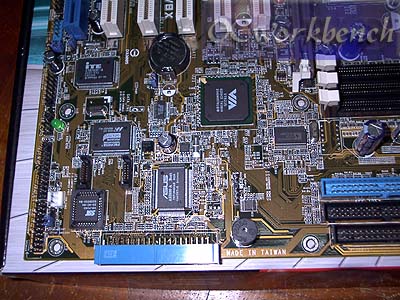

Single channel RAID connector on the front of the PCB. On board are the Promise ATA controller chipset, VIA south bridge. ASUS I/o

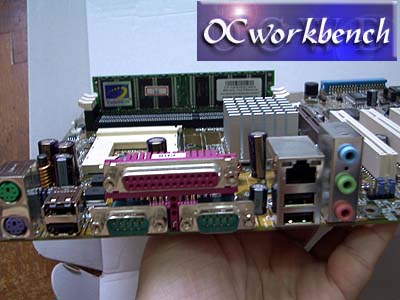

Rear of the mainboard showing the 6 channel audio ports, LAN ports, USB 2.0 etc.
