| | Shuttle AK35GTR
v2.2 VIA KT33 mainboard (1)
Overclocker 22 Mar 2002
Shuttle recently introduced another model after the
successful AK35GTR (KT266A). In fact, this board looks exactly like the AK35GTR
which we reviewed last year. The main difference is that it has DDR333 support
via KT333 chipset. VIA 8233A south bridge supports the ATA-133 and the HPT372
supports ATA-133 RAID 0/1/0+1.

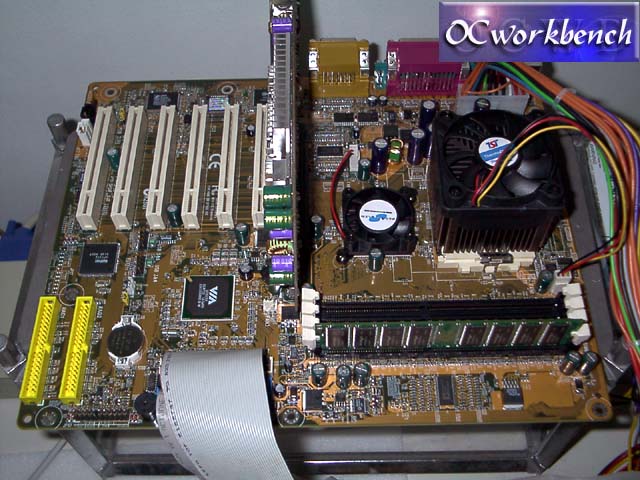

The Shuttle AK35GTR v2.x as I have said is an
improved edition of the AK35GTR. It is one of the few boards that features 4
DIMMs (Supports 6 banks up to 3 GB DRAMs
(512Mb x8/x16 DRAM technology) for un-buffered DDR SDRAM module Supports 8 banks
up to 4 GB DRAMs (512Mb x8/x16 DRAM technology) for register DDR SDRAM module No
ECC function support), O/C features and 5.1 channel audio. It also comes with
a Cmedia chipset that Support 5.1 speakers, C3DX positional audio in 6 CH
speaker mode HRTF-3D positional audio, supporting Direct Sound 3D and A3D
interface and Legacy SBPRO compatible
This is probably the only board that allows
Vcore to be adjustable up to a high of 1.10v ~ 2.3v. Normal mainboard
usually stop at a maximum of 1.85v while Shuttle provided more for the
overclockers.
CPU Ratio is selectable from 5.5x ~ 12.5x.
DDR voltage is selectable too from 2.5v, 2.55, 2.6, 2.7v. CPU Clock is
adjustable from 133 ~ 200Mhz at 1Mhz stepping.
Below are the specifications of the board. The
subsequent pages will be the gallery followed by benchmark results including
SuperPI, Q3, etc.
AK35GT/AK35GTR v2.x Mainboard
Specifications:
|
CPU
Support: Socket A CPU
|
AMD Duron CPU with
200MHz FSB
AMD Athlon CPU with 200 / 266MHz FSB
AMD Athlon XP CPU with 266MHz FSB
|
ChipsetsVIA
KT333
|
(North) VIA VT8367
High Performance Athlon CPU Interface
Integrated full featured Accelerated Graphics Port (AGP) controller
Integrated high bandwidth 266MB/S 8-bit Vlink Host controller
Integrated advanced high performance DDR DRAM controller to support DDR
333 SDRAM
(South) VIA VT8233
Built in high bandwidth 266MB/S 8-bit V-link Host controller
Integrated USB controller with two root hub and four function ports
Integrated dual channel UDMA 33/66/100 master mode EIDE controller
LPC interface for Low Pin Count interface to Super-I/O or ROM
Integrated Keyboard Controller with PS2 mouse support
Integrated DS12885-style Real Time Clock with extended 256 byte CMOS RAM
and Day/Month Alarm for ACPI
System Management Bus Interface
Sophisticated PC99-Compatible Mobile Power Management
Integrated Plug and Play Controller
|
Front
Side Bus
|
Including 200/266 MHz
(BIOS step-less adjustable)
|
Form
Factor
|
ATX
|
Multiplier
|
Jumper-less (BIOS
adjustable)
|
Memory:
4 x 184-pin DIMM
|
Supports 6 banks up to 3
GB DRAMs (512Mb x8/x16 DRAM technology) for un-buffered DDR SDRAM module
Supports 8 banks up to 4 GB DRAMs (512Mb x8/x16 DRAM technology) for
register DDR SDRAM module
No ECC function support
|
H/W
Audio: C-Media 8738
|
Support 5.1 speakers,
C3DX positional audio in 6 CH speaker mode
HRTF-3D positional audio, supporting Direct Sound 3D and A3D interface
Legacy SBPRO compatible
|
USB
Hub: Built in VT8233A
|
Integrated USB
Controller with three root hubs and six function ports
USB v.1.1 and Intel Universal HCI v.1.1 compatible
Support up to 6 ports
|
Expansion
Slot:
|
AGP: 1 AGP slot
Support AGP 2.0 compliant, 1X, 2X, 4X AGP device
Support both 1.5V / 3.3V AGP electrical device
Supports SideBand Addressing (SBA) mode (non-multiplexed address / data)
PCI: 6 PCI slots, PCI 2.2 compliant
Support 32 bit PCI master mode device
133 Mbyte/sec Maximum Throughput
|
I/O:
Winboad 83697HF
|
Meet LPC Spec. 1.01
Integrate Hardware Monitor functions
Support up to four 3.5-inch or 5.25-inch floppy disk drives
Two high-speed 16550 compatible UARTs
Support IrDA version 1.0 SIR, SHARP ASK-IR Consumer IR with Wake-Up
function
Support PS/2 compatible bi-directional parallel port
Support Enhanced Parallel Port (EPP) - Compatible with IEEE 1284
specification
Support Extended Capabilities Port (ECP) - Compatible with IEEE 1284
specification
Game Port
MIDI Port
|
IDE
interface: Built in VT8233A
|
2 x UltraDMA/100/133 Bus
Master IDE from VT8233A
2 x UltraDMA/133 Bus Master IDE from High Point 372 to support RAID 0,
RAID1, RAID0+1 function
80-pin Cable Backward Compatible Legacy ATAPI Devices
ATAPI IDE CD-ROM, CD-R, CD-RW, and LS-120 Supports
support RAID 0, RAID1, RAID0+1 function (AK35GTR only)
|
H/W
Monitoring: Built in Winbond 83697HF
|
Smart fan control
system, support "Thermal Cruise" and "Speed Cruise
2 thermal inputs from CPU and system temperature sensor
6 positive voltage inputs (+12V, -12V, +5V, -5V, +3.3V, Vcore)
2 intrinsic voltage monitoring (Vbat, +5VSB)
2 fan speed monitoring inputs
2 fan speed control
Build in Case open detection circuit
WATCHDOG comparison of all monitored values
Programmable hysteresis and setting points for all monitored items
Over temperature indicate output
Automatic Power On voltage detection Beep
Issue SMI#, IRQ, OVT# to activate system protection
Winbond Hardware Doctor
Support Intel LDCM TM / Acer ADM compatible
|
Power
Management
|
ACPI v1.0 Compliant
APM v1.2 Compliant
Supports multiple system suspend types: power-on suspends with flexible
CPU/PCI bus reset options, suspend to DRAM, and suspend to disk
(soft-off), all with hardware automatic wake-up
Multiple suspend power plane controls and suspend status indicators
lThermal alarm on either external temperature sensing circuits
Support Power Fail Resume function
|
Bios:
Award PnP BIOS
|
Built in 2MB Flash ROM
DMI 2.3
BIOS FSB step-less setting from 100MHz to 166MHz
BIOS Multiplier setting from 5X to 14X
CPU core voltage setting from +0.025V ~ +0.20V
Support IRQ manual assign table
|
On
Board Ports / Connectors / Jumpers / Headers (front/back panel)
|
Back Panel:
2 Serial Ports
1 Parallel Port (SPP, EPP, ECP)
1 PS/2 Keyboard Port
1 PS/2 Mouse Port
2 USB Ports
1x Game / MIDI Port
1x Line in, 1x Line out, 1x Mic
Connectors:
1 x ATX power connector
4 x Fan Power connectors (one for system chipset fan)
4 x UltraDMA/100/133 Bus Master IDE
1 x Floppy
Jumpers:
Clear CMOS
BIOS boot block protection
Headers:
1 set of 2 x5 pin Front Panel USB header
Mini CD Audio in
TAD in
CD Audio in
Other Features:
Suspend switch and LED
|
Accessory:
Award PnP BIOS
|
CD-ROM Disk:
VIA 4-1 driver
High Point IDE driver
C-Media Audio driver
User manual in PDF file
IDE Cable:
2x UDMA 66/100/133 cable
Floppy Cable:
1 x Floppy Cable
USB cable:
1 x USB cable with bracket for header (optional)
Audio Cable:
1 x Audio Cable for Central and Bass out
User manual:
1 x print user manual
1 x Heat Sink and fan attached on North Bridge chipset
1 x AGP RM
|
