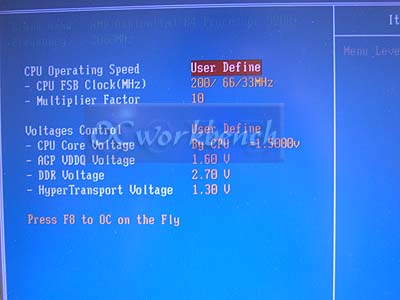

| SoftMenu III is
available, and by default, it was set to 204MHz if you press F8 to OC on the
fly. In our test, we set CPU FSB to 200.
There is no option MAXMEMCLK to run CPU:MEM at
Async settings. |

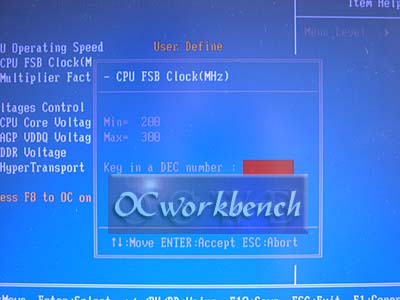

CPU frequency
can be set from 200 ~ 300MHz. Do notice that the BIOS does not cater for FIX
PCI/AGP. It seems to operate based on a divider which increases the PCI to
38MHz before lowering it down to 33MHz. We menaged 223MHz during oc test.
226 POSTs but unstable. e.g. at
232MHz, PCI= 38 AGP= 76
at 233MHz, PCI = 33, AGP= 66 |
 |
 |

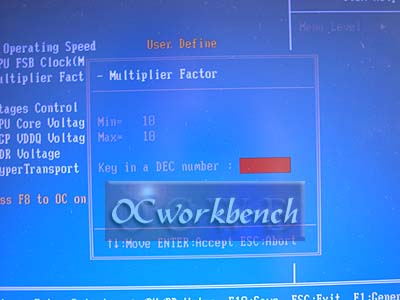

| There is a
multiplier control. Although you can select it, there is no way you can
change the multiplier. I am not sure if future BIOS will have that enabled.
The current BIOS does not. |

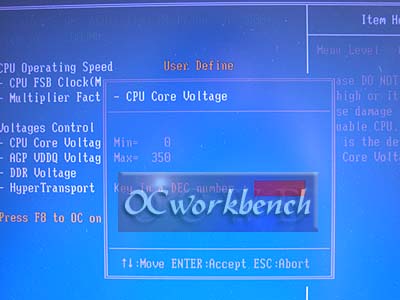

CPU Vcore
Voltage selection is a bit different as it offers up to 350 steppings!! At
the maximum, you can reach VID + 350mV = 1.85V. |
 |
 |

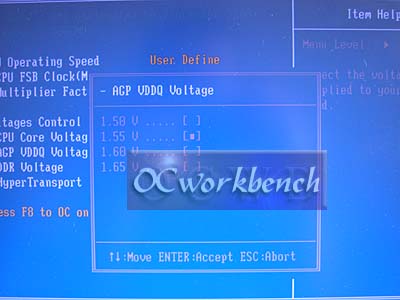

| AGP Voltage is
selectable from 1.50v ~ 1.65v |

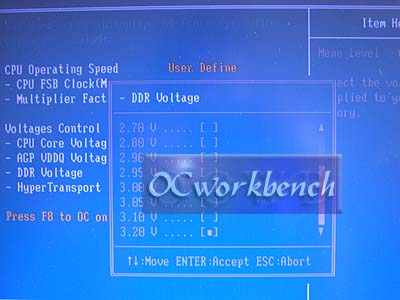

DDR Voltage can
be chosen from 2.50v to 3.20v |
 |
 |

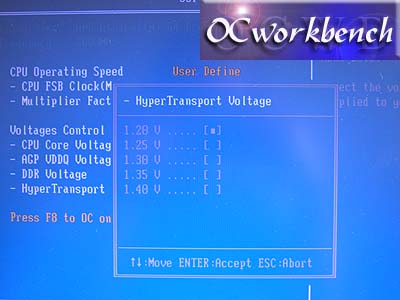

| There is
something that most boards don't offer. ABIT K8VMax3 allows you to set the
Hypertransport voltage up to 1.40v |
In our tests,
we set it to operate in CAS 2, 5-2-2. |
 |
|

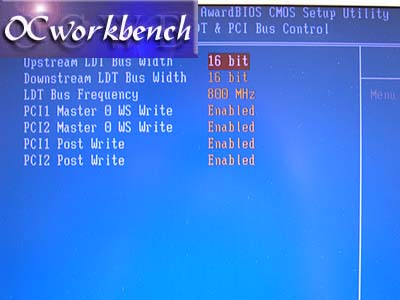

| LDT bus freq is
800Mhz and Up/DownStream are 16 bits bus width |
|
