An Evaluation BIOS is used
for this board. As you can see it still shows the CPU as 3100+. On another
board, it is shown as 2900+

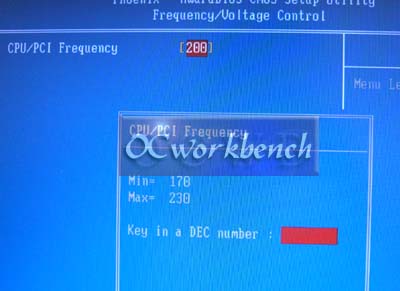

The BIOS has option to
adjust the FSB. We tested the FSB at various FSB. As there are no voltage
adjustments or whatsoever, this is only the best we can do.
All done at CAS 2.5, 6-3-3
230, NO POST
225 POST, hang while entering WIndows
220 Rebooted while entering Windows
218 Entered Windows. SuperPI no problems. Quake 3 = 372fps (1024x768x32).

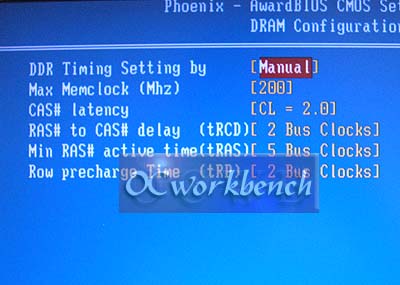

In all our tests, we set the ram timing as
above CAS 2, 5-2-2 (tras, tRCD, tRD)

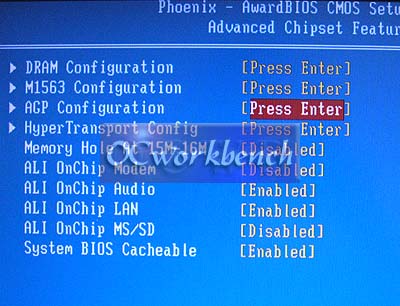

In the Advanced Chipset Features, you can turn
off Onboard audio etc. In our benchmarks, audio is turned off.
