Asus SK8N Motherboard
Gallery 1
TimB May 2003

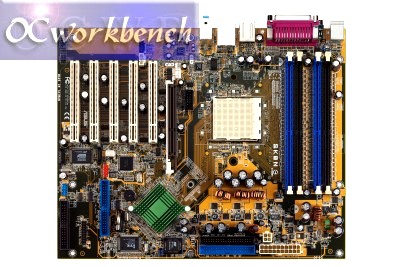

We have some exclusive photos for you of the latest nForce3 based system from
Asus. As expected its feature rich with support for AMD Opteron processors using socket
940, onboard RAID, Serial ATA, onboard Realtek LAN controller, S/PDIF, 6 USB2.0
ports and additional special features that Asus include:
(Click for larger version)
The full specifications are
below (subject to change without notice).
|
CPU |
Socket 940 for AMD Opteron processor |
|
Chipset |
NVDIA nForce 3 pro150 |
|
Hyper Transpor |
6.4 GB/Sec |
|
Memory |
Dual-Channel memory architecture
4 x 184-pin DIMM Sockets support max. 8GB PC2700 / PC2100/ PC1600 ECC DDR
SDRAM Registered memory |
|
Expansion Slots |
1 x AGP 8X |
|
5x PCI |
|
Storage |
2 x UltraDMA 133 /100
Promise R20378 RAID controller
1xUltraDMA133 supports two hard drivers
2xSerial ATA
RAID0, RAID1, RAID 0+1 |
|
Audio |
ALC650 |
|
S/PDIF out interface |
|
LAN |
CK8 MAC+ RealTek RTL8201BL PHY |
|
USB2.0 |
Integrated 6 USB2.0 ports |
|
Special Feature |
ASUS MyLogo2 |
|
ASUS EZ Flash |
|
Support S/PDIF out interface |
|
ASUS C.P.R.(CPU Parameter Recall) |
|
ASUS CrashFree-BIOS |
|
ASUS Q-Fan |
|
ASUS Multi-language BIOS |
|
Internal I/O connectors |
1xUSB2.0 connector support additional 2 USB 2.0 ports |
|
20-pin ATX power connector |
|
4-pin ATX 12V power connector |
|
CPU /chassis Fan connectors |
|
COM2 connector |
|
CD/ AUX audio in |
|
IEEE 1394 connector |
|
Overclock Feature |
ASUS JumperFree |
|
Memory voltage adjustable |
|
Back Panel I/O |
1xPS/2 keyboard |
|
1xPS/2 mouse |
|
1xSerial |
|
4xUSB |
|
1xParallel |
|
1xRJ45 |
|
1xIEEE1394 |
|
1x Audio I/O |
|
BIOS Feature |
4Mb Flash EEPROM
AMI BIOS with enhanced ACPI,DMI,PnP,Green,TCAV
ASUS EZ Flash, ASUS Mylogo2, Multilanguage, ASUS Q-Fan, ASUS C.P.R, SM BIOS
2.3, Crash-Free BIOS2 |
|
Industry Standard |
PCI 2.2, USB2.0 |
|
Manageability |
WOL by PME, WOR by PME |
|
Support CD |
drivers |
|
ASUS PC Probe |
|
Trend Micro PC-cillin 2002 anti-virus software |
|
Accessories |
User's manual |
|
UltraDMA cable |
|
FDD cable |
|
IDE cable |
|
SATA cable |
|
COM2 cable |
|
One port 1394 module |
|
2 Port USB module with cable |
|
I/O shield |
|
From Factor |
ATX |
|
12"*9.6" (30.5cm*24.5cm) |
