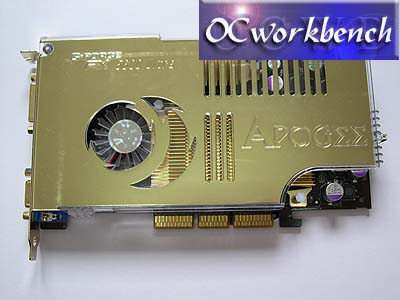

Chaintech, one of the leading graphics card manufacturers
released the FX71 card based on the FX5600Ultra chipset some weeks ago. While we
have seen many other 5600FX cards reviewed on the net, we will see how well this
card fares in terms on overclocking and performance.
Something unique on this card is that it makes use of
Gas-Turbine Technology: Exclusive implement of technology incorporated in modern
supersonic jet engines. With maximum air flow and pressure, the heat dissipation
created by GT Technology is up to 30% more than other existing cooling fans
under the same operating condition.
The card is able to be overclock from 400/800 to 460/850. Although the
percentage increase in performance isn't that great, but it could be due to the
design which allows better overclockability of the core and the 2.5ns memory on
board.
As we all know, Chaintech never disappoints us because be it
their graphics cards or mainboards, the packaging and the package that comes
with it is simply amazing. The package comes with the following software and
accessories :
Software
Accessories
3Deep
WinDVD 6 Channel
WinDVD Creator
WinRip
WinProducer 3.0
MDK2
Game pack (5 in 1)
S-Video Cable (150cm)
Composite Cable
VIVO Cable (4 port)
DVI-I to VGA Adapter
Anti-Static Brush
Q Ball (Monitor Cleaner)
Below are the specifications of the card.
Specifications
Interface
AGP interface
4x/8x AGP supports
Chipset
nVIDIA GeForceFX 5600 Ultra
Memory
128MB DDR SDRAM
General features
0.13u process technology
128-bit memory interface
256-bit graphics architecture
400 MHz engine clock
800 MHz memory clock
400 MHz internal RAMDAC
88 Million vertices/ sec
1.4 Billion texels/ sec fill rate
12.8 GB/sec memory bandwidth
4 pixels per clock rendering engine
16 texels per pixel with 8 textures applied per clock
CineFX Shading Architecture
128-bit studio-precision color
High-performance, high-precision 3D rendering engine
High-performance 2D rendering engine
Intellisample Technology
Advanced Display Pipeline with full nView Capabilities
Digital Vibrance Control (DVC) 3.0
NVIDIA nView multi-display technology
Unified Driver Architecture (UDA)
High quality
video playback
Dual, 400MHz RAMDACs for display resolutions up to and
including 2048x1536@85Hz
Integrated NTSC/PAL TV encoder support resolutions up
to 1024x768 without the need for panning with built-in Macrovision copy
protection
DVD and HDTV-ready MPEG-2 decoding up to 1920x1080i
resolutions
Support for dual-link DVI for compatibility with
next-generation flat panel displays with resolutions greater than
1600x1200 without the need for reduced blanking
