SiS 648FX Ref Board Gallery

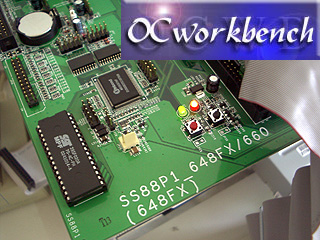

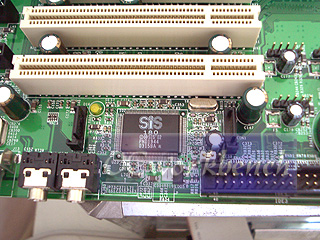

The SiS 180 chipset is responsible for 2 SATA and 1 channel of IDE. You can mix and match SATA and PATA for RAID 0,1,0+1 or JBOD. Isn't it flexible?	The SiS 648FX Reference board uses Power button on/off and reset button.

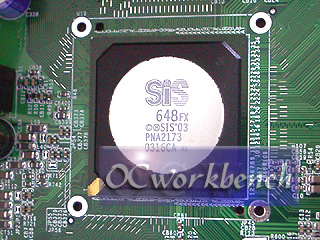

	The new SiS 648FX North Bridge which features Hyperstreaming technology for faster performance on par with dual channel systems

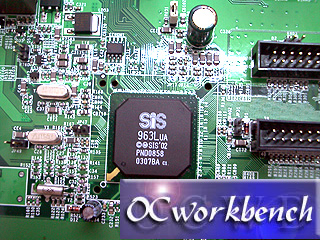

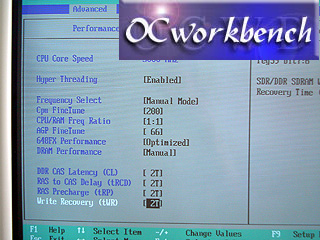

SiS 963L South Bridge	BIOS Screen showing the ram timings set. There are lots of CPU/RAM Freq Ratios available. In our test we use 1:1 sync. AGP we fix it at 66Mhz.
