Albatron K8 Ultra U Pro Socket 754 ULi M1689 Mainboard Gallery 2/4
Bluetooth 6 Dec 2004

Mainboard

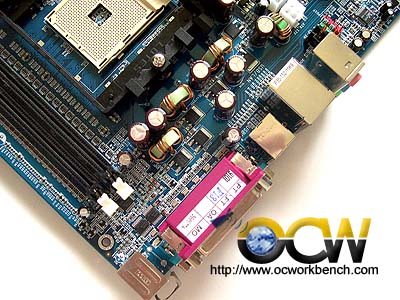

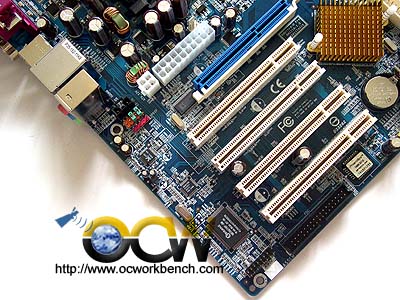

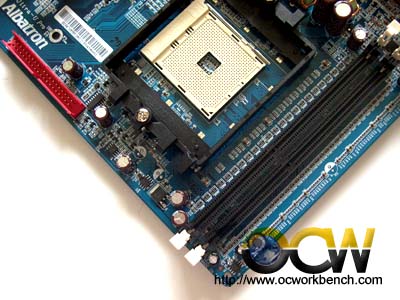

On the upper portion of the board, we see the floppy connector followed by 4 PCI, 1 AGP and the power connector. Further to the right are the power regulators, Socket 754 and 2 DIMMs (up to 2GB of DDR400) can be installed. The connectors behind are the 6 ch audio, USB, LAN, Parallel, Keyboard, mouse ports.

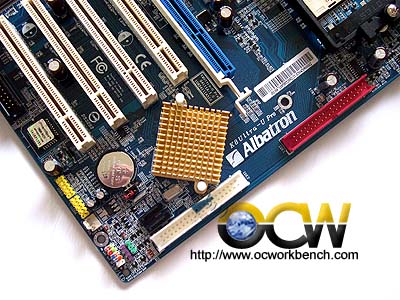

At the bottom half of the mainboard, we see the yellowed coloured USB external connectors, a multi coloured front panel connector, 2 SATA ports, CMOS battery, IDE ports, chipset.

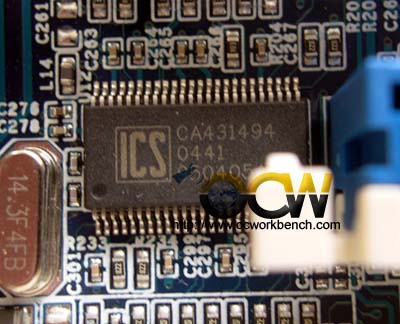

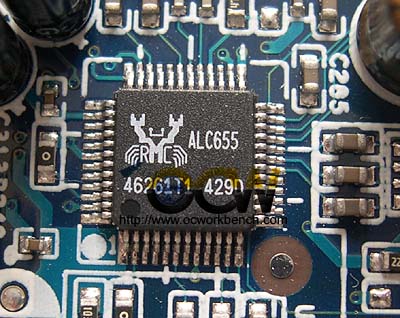

Clk Gen : ICS 950405	AC97 Codec ALC655

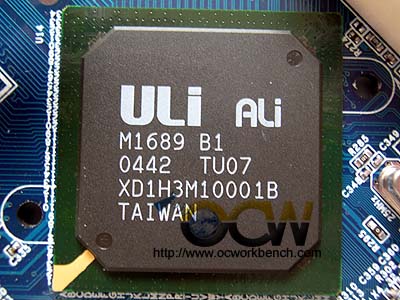

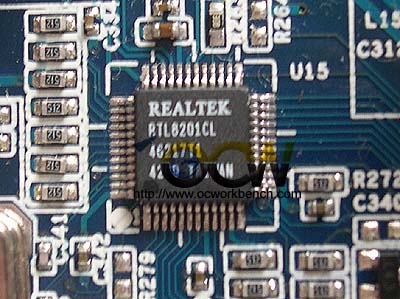

The cool ULi M1689 B1 stepping single chipset (week 42)	Realtek RTL8201CL LAN PHY
