CeBIT Day 1
Bluetooth 18 Mar 2004

This year, CeBIT is more of a PCI-Express Show since most manufacturers will be showcasing their PCI-E boards. On the other hand, AMD Socket 939 boards are also something that everyone will be focusing on.

Firstly, we will take a look at some of the boards offered by Gigabyte.

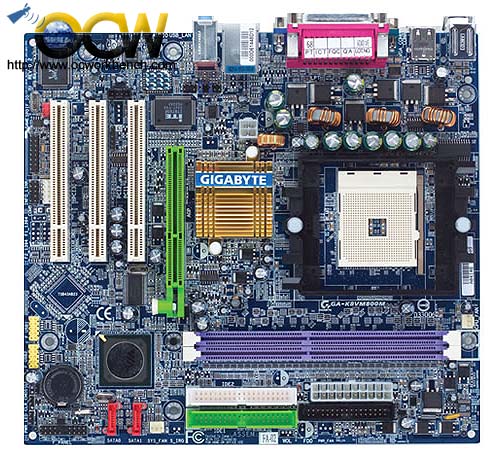

GA-K8VM800M

CPU SupportAMD Athlon64
CPU SocketSocket 754
ChipVIA K8M800/ 8237
FSB1600MHz
Graphics InterfaceAGP 8X/ 4X
VGAIntegrated
Memory TypeDDR400/333/266/200
Memory Socket2
Max Memory2GB
PCI3
ATA connector2*SATA/ 2*PATA133
RAIDSATA RAID 0,1
Audio6 Channel AC97 + JS
1394N/A
USB portUSB2.0 X 8
LAN / IO shield10/100 LAN
FeaturesXpress BIOS Rescue
Software
*Xpress Install
*Xpress Recovery
*EasyTune4
*Norton Internet Security 2004

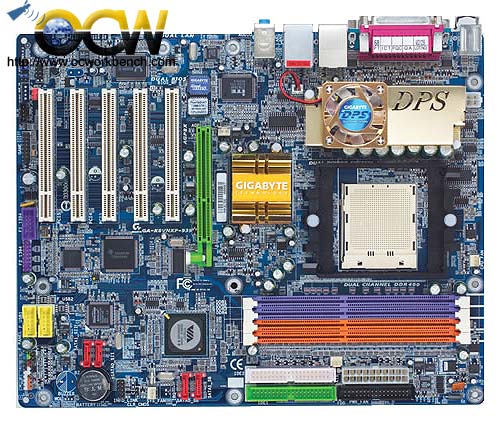

GA-K8VNXP-939 VIA K8T800Pro Mainboard for Socket 939, Athlon FX, DC DDR400, 4 SATA, DPS

Specification
CPU SupportAMD Athlon64/FX
CPU SocketSocket 939
ChipVIA K8T800 Pro + 8237
FSB2000MHz
Graphics InterfaceAGP 8X/ 4X
VGA -
Memory TypeDDR400/333/266/200
Memory Socket4 (Dual Channel)
Max Memory4GB
PCI5
ATA connector4*SATA/ 2*PATA133
RAIDSATA RAID 0,1
Audio8 Channel AC97 + UAJ
13943 (1394b)
USB portUSB2.0 X 8
LAN / IO shieldDual LAN (GbE+10/100)
FeaturesDPS Gold, Dual BIOS
Software
*Xpress Install
*Xpress Recovery
*EasyTune4
*Norton Internet Security 2004

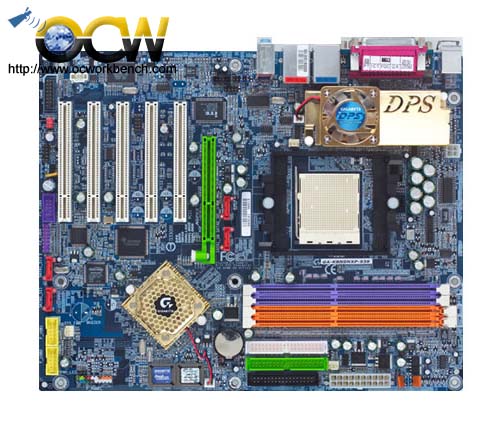

GA-K8NSNXP-939 nF3 Ultra Mainboard for Socket 939, Athlon FX, DC DDR400, 4 SATA, DPS

Specification
CPU SupportAMD Athlon64/FX
CPU SocketSocket 939
ChipNVIDIA nForce3 Ultra
FSB2000MHz
Graphics InterfaceAGP 8X/ 4X
VGA -
Memory TypeDDR400/333/266/200
Memory Socket4 (Dual Channel)
Max Memory4GB
PCI5
ATA connector4*SATA/ 2*PATA133
RAIDSATA RAID 0,1
Audio8 Channel AC97 + UAJ
13943 (1394b)
USB portUSB2.0 X 8
LAN / IO shieldDual LAN (GbE+10/100)
FeaturesDPS Gold, Dual BIOS
Software
*Xpress Install
*Xpress Recovery
*EasyTune4
*Norton Internet Security 2004
