First look
DFI Lanparty boards
has always been well sought after as it promises very impressive overclocking
options. Today, we have the opportunity to test out this new board from DFI - LP
UT nF3-250Gb.
This new board is is
based on the Nvidia NF3-250Gb chipset. As we know. the nF3-250gb appeals to
overclockers as it offers a FIX AGP to 66 or a fix AGP freq. This allows one to
overclock the FSB without affecting the stability as it does not use a divider
on other chipsets.
Some of the amazing
OC settings include a wide range of FSB of up to 456MHz, multiplier control to
20x, large range of Async settings, Vdimm up to 3.1v, chipset up to 1.8v, Vcore
up to 1.55v X 136% = 2.1v
On top of the nice
overclocking options available and large range of voltages for various options
it offers built in Firewall by virtue of the NF3-250GB chipset. It also
incorporates the Marvell 88E1111 GbE PHY 10/100/1000BASE-T IEEE 802.3 compliant.
There is also IEEE 1394 (optional) supported by VIA VT6307 controller
supporting 2 x 100/200/400 Mb/sec ports
The board also
supports two IDE connectors support four UltraDMA 133Mbps hard drives. NVIDIA
RAID supports spanning across Serial ATA and Parallel ATA RAID 0, RAID 1, RAID
0+1 and JBOD. The SATA also comes with RAID and supports up to four SATA
interfaces with speed up to 1.5Gbps
- Two Serial ATA ports supported by nForce3 250Gb chip
- Two Serial ATA ports supported by Marvell SATA PHY
NVIDIA RAID also supports spanning across Serial ATA and Parallel ATA
RAID 0, RAID 1, RAID 0+1 and JBOD
The board also uses the Realtek ALC850 8ch audio codec with S/PDIF-inout
interface for the best gaming experience.
Package

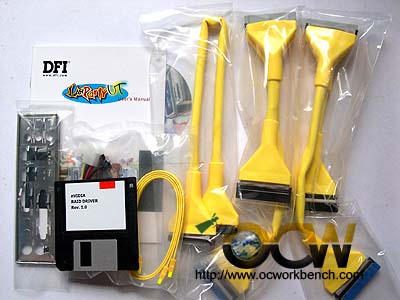

The package comes with the UV IDE
cables, floppy cable and SATA cables. A manual, CDROM with drivers and a
diskette with RAID driver is provided.
FrontX in the previous is absent in
this new series of Lanparty package.
Specifications
CPU
AMD Athlon 64 (up to 3700+)
Socket 754
Chipset
nVIDIA® nForce3 250Gb
Memory
Three 184-pin DDR SDRAM DIMM sockets
Supports single channel (64-bit wide) memory interface
Supports up to 3GB memory when using DDR333
Supports up to 2GB memory when using DDR400
Supports PC2700 (DDR333) and PC3200 (DDR400)
DDR SDRAM DIMM
Supports x8/x16, non-ECC, up to 512Mb DDR devices
Supports unbuffered DIMM
Power Management
Supports ACPI specification and OS Directed Power Management
Supports ACPI STR (Suspend to RAM) function
Wake-On-Events include:
- Wake-On-PS/2 Keyboard/Mouse
- Wake-On-Ring (external modem)
- Wake-On-LAN
- RTC timer to power-on the system
AC power failure recovery
Hardware Monitor
Monitors CPU/system temperature
Monitors 12V/5V/3.3V/Vcore/Vbat/Vsb/Vnb/Vdram/Vagp voltages
Monitors CPU/chassis fan speed
CPU Overheat Protection function monitors CPU temperature during system boot-up
LAN
Marvell 88E1111 GbE PHY
10/100/1000BASE-T IEEE 802.3 compliant
IDE
two IDE connectors support four UltraDMA 133Mbps hard drives
NVIDIA RAID supports spanning across Serial ATA and Parallel ATA
RAID 0, RAID 1, RAID 0+1 and JBOD
Serial ATA with RAID
Supports four SATA interfaces with speed up to 1.5Gbps
- Two Serial ATA ports supported by nForce3 250Gb chip
- Two Serial ATA ports supported by Marvell SATA PHY
NVIDIA RAID supports spanning across Serial ATA and Parallel ATA
RAID 0, RAID 1, RAID 0+1 and JBOD
IEEE 1394 (optional)
VIA VT6307 controller
Supports two 100/200/400 Mb/sec ports
AGP
Supports AGP 8x up to 2132MB/sec. and AGP 4x up to 1066MB/sec. bandwidth
for 3D graphics applications
Supports 0.8/1.5V add-in cards
Rear Panel I/O Ports
1 PS/2 mouse port
1 PS/2 keyboard port
1 DB-9 serial port
1 DB-25 parallel port
2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
1 IEEE 1394 (Optional)
1 RJ45 LAN port
4 USB 2.0/1.1 ports
6 audio jacks for 8CH audio output
I/O Connectors
2 connectors for 4 additional external USB 2.0/1.1 ports
1 connector for 1 external IEEE 1394 port (Optional)
1 front audio connector for external line-out and mic-in jacks
1 CD-in internal audio connector
1 S/PDIF connector for optical cable connection
1 IrDA connector
4 Serial ATA connectors
2 IDE connectors
1 floppy connector
2 ATX power supply connectors (20-pin and 4-pin)
1 front panel connector
3 fan connectors for CPU fan, chassis fan and 2nd fan
EZ touch switches (power switch and reset switch)
