WinFast 755FXK8AA-8EKRS SiS 755FX Mainboard Gallery 1/4
Bluetooth 22 Nov 2004

First look

It has been sometime since we last heard about the SiS 755FX chipset. Today, we bring you an exclusive preview of the WinFast 755FXK8AA-8ERKS K8 Socket 939 Mainboard based on the SiS 755FX+964 chipset.

If you have been following the industry, WinFast is the "brand" for the AMD series of boards by Foxconn. This mainboard supports all the necessary expansion capabilities and they include 2 SerialATA 1.5Gb/s RAID 0,1,JBOD support from 964 south bridge and another 2 more using SiliconImage 3112 chipset. The board also supports 7.1channel Audio, Gigabit Ethernet, 1394, 8 USB 2.0 ports (4 at rear, 4 through extension bracket).

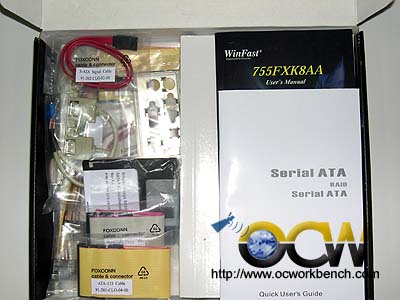

Package

Specifications

Processor

AMD Athlon™ 64/Athlon 64 FX, Socket 939 (939-pin)

Chipset

SiS755FX + 964

Memory

Dual channel, unbuffered, 2.5V DDR266/333/400, (4) 184-pin DIMM sockets, max 4GB

Graphics

Discrete (non-integrated) - use expansion slot

Expansion Slots

1 x AGP 8X, 5 x PCI

IDE

2 x ATA/133 + 4 x SATA/150 (up to 2 x 2-drive RAID 0, 1 arrays)

Audio

Integrated, 7.1 channel audio, including front audio and S/PDIF headers (Realtek)

LAN

Integrated Gigabit Ethernet (10/100/1000) controller (Realtek)

IEEE-1394

Integrated (VIA), 1 x rear + 1 x front I/O header

Rear Panel

1 x PS/2 keyboard
1 x PS/2 mouse
1 x RJ45 (LAN)
4 x USB 2.0
1 x line-in/line-out/mic (audio)
Additional line-out for 7.1 channel High Definition audio
1 x coax S/PDIF
1 x parallel (SPP/ECP/EPP)
1 x COM (16550-compatible UART)
1 x IEEE-1394

Internal

1 x floppy disk drive
2 x USB 2.0 headers (supports 4 ports)
1 x IEEE-1394 header
Front audio header
1 x S/PDIF (coax out) header

BIOS

4Mb flash EEPROM w/ LAN boot, PnP, ACPI, WfM, DMI 2.0,

Features

Wake-on-LAN (WOL), suspend-to-RAM (STR), suspend-to-disk (STD), SuperUtilities - SuperBoot, SuperBIOS-Protect, SuperRecovery, SuperSpeed, SuperStep, SuperLogo, and SuperUpdate

Accessories

Support CD, user's manual (or installation guide), rear I/O shield, 1 x floppy drive cable, 1 x HDD/ODD drive cable (supports UDMA/ATA 33/66/100/133 drives), RAID driver on floppy disk(s), 2 x SATA data cables, 1 x SATA power cable (supports 2 drives), 1 extra HDD/ODD drive cable (supports UDMA/ATA 33/66/100/133 drives), Rear cable/bracket assembly w/ 2 x USB 2.0 ports, Processor heat sink retention mechanism

Form Factor

ATX, 12.0" x 9.6" or less - see User Manual
