ASrock 775Twins-HDTV (ATi RC410) Intro 1
Bluetooth 9 Oct 2005

ASrock 775Twins-HDTV

We always thought that ASrock only makes entry level boards. Looks like they have surprise us again with its introduction of 775Twins-HDTV based on an ATi Chipset. Looks like ASrock is determined to make available boards based on all chipsets.

775Twins-HDTV is a board based on ATi Radeon Xpress 200 chipset.  Supporting the LGA775 for Intel Dual Core Pentium XE and Pendium D processors with FSB 1066/800/533 with EMT64T, Hyper threading. The board is based on the ATI™ Radeon® Xpress 200  Chipset + ULi M1573 south bridge. With a flexible memory layout, it supports both DDR and DDR2. So you can still use your own memory sticks. Up to a memory of 2GB is supported either using DDR or DDR2.

In terms of graphics expansion, it comes with a PCIex16 slot for add on PCIe graphics card. If you want to save some money, the ATi Radeon Express 200 already comes with an integrated X300 video core supporting PS 2.0 and DX 9 and you can use up to a max of 128MB Shared memory. There is also a Fast Ethernet, 7.1ch audio, 4 USB, 4 SATA 1.1 RAID 0/1/0+1/JBOD ports supported by the ULI m1573 south bridge.

Specifications

Platform - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
CPU - LGA 775 for Intel Dual Core Pentium XE and Pentium D /
    Pentium 4 / Celeron D processor
  - FSB 1066/800/533 MHz
  - Supports EM64T CPU
  - Supports Hyper-Threading Technology
  - Supports Untied Overclocking Technology
Chipset - Northbridge: ATI™ Radeon® Xpress 200  Chipset
  - Southbridge: ULi 1573
Memory - 2 x DDR DIMM slots
  - Supports DDR400/333/266
  - Max. capacity: 2GB
  - 2 x DDRII DIMM slots
  - Supports DDRII667/533
  - Max. capacity: 2GB
Hybrid Booster - CPU Frequency Stepless Control
  - ASRock U-COP
  - Boot Failure Guard (B.F.G.)
Expansion Slot - 2 x PCI slots
  - 1 x PCI Express x 16 slot
  - 1 x PCI Express x 1 slot
  - 1 x AMR slot
Graphics - Integrated ATi X300-based 2D/3D graphics
  - DirectX 9.0
  - Pixel Shader 2.0
  - Max. shared memory 128MB
Audio - Realtek ALC850 7.1channel AC'97 audio codec
LAN - Realtek PHY RTL8201CL
  - Speed: 10/100 Ethernet
  - Supports Wake-On-LAN
Rear Panel I/O ASRock 8CH I/O
  - 1 x PS/2 Mouse Port
  - 1 x PS/2 Keyboard Port
  - 1 x Serial Port: COM1
  - 1 x Parallel Port (ECP/EPP Support)
  - 4 x Ready-to-Use USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - Audio Jack: Side Speaker / Rear Speaker / Central / Bass /
    Line in / Front Speaker / Microphone
Connector - 4 x Serial ATA 1.5 Gb/s connectors
    (Support RAID 0, 1, 0+1, JBOD)
    (No support for "Hot Plug" function)
  - 2 x ATA133 IDE connectors (support 4 x IDE devices)
  - 1 x Floppy connector
  - CPU/Chassis FAN connectors
  - 20 pin ATX power connector
  - 4 pin 12V power connector
  - CD in header
  - Front panel audio connector
  - 2 x USB 2.0 headers (support 4 USB 2.0 ports)
BIOS Feature - 4Mb AMI BIOS
  - AMI Legal BIOS
  - Supports "Plug and Play"
  - ACPI 1.1 Compliance Wake Up Events
  - Supports jumperfree
  - SMBIOS 2.3.1 Support
Support CD - Drivers, Utilities, AntiVirus Software
Hardware Monitor - CPU Temperature Sensing
  - Chassis Temperature Sensing
  - CPU Overheat Shutdown to Protect CPU Life
  - CPU Fan Tachometer
  - Chassis Fan Tachometer
  - Voltage Monitoring: +12V, +5V, +3.3V, Vcore

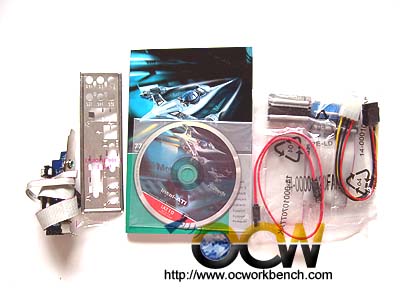

Accessory - Quick Installation Guide, Support CD, I/O shield
  - Floppy/ATA 133 cables
  - 1 x SATA data cable
  - 1 x SATA 1-to-1 power cable
  - 1 x MR card
  - 1 x VGA_HDTV panel
  - 1 x VGA_2x8 cable
  - 1 x AV/S_2x3 cable
OS - Microsoft Windows 98SE / ME / 2000 / XP / XP 64-bit compliant
Certifications  - FCC, CE, WHQL

Discuss in Forum
