ASrock 775i915P-SATA2 RoHL Mainboard Intro 2/4
Bluetooth 17 Nov 2005

Pricing of 7800GTX >>>

Gallery

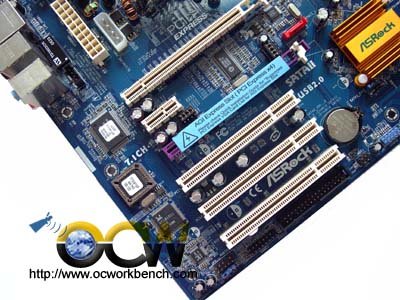

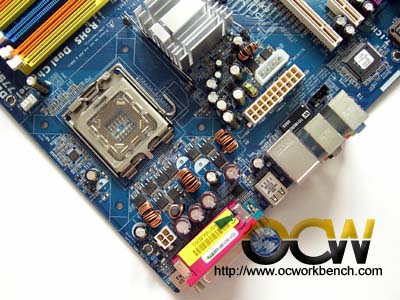

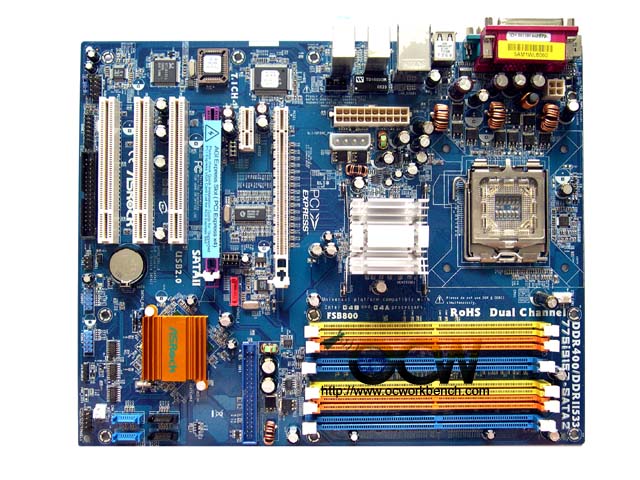

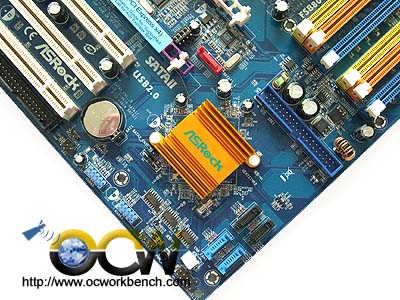

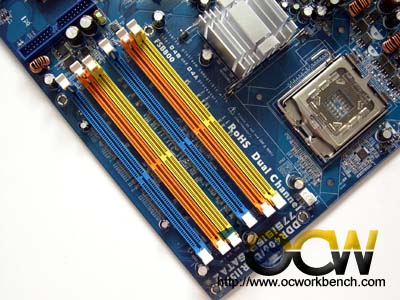

The board comes with 3 PCI, PCIe x 4, PCIe x16, 1 PCIe x1. Towards the centre, we see the power connector and the North Bridge i915P with a passive heatsink. Right behind the slot is the Realtek RTL8201 LAN PHY and audio codec Realtek ALC850. Furtherdown, we see 4 rows of DDR2 and 2 rows of DDR (Max capacity 2GB for DDR and 4GB for DDRII slots). To the left is the red SATA II connector in red supported by the Jmicron controller.  Next to it is a South Bridge ICH6 supporting the 4 SATA I ports and single IDE channel. One thing to note is that if you install PCIe card to AGI Express slot, PCIE2 slot (PCIex1) and SATAII functions will be disabled.
