ASrock 939A8X-M Mainboard Intro 2/4
Bluetooth 22 Mar 2005

Gallery

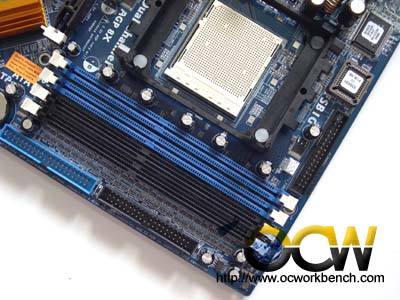

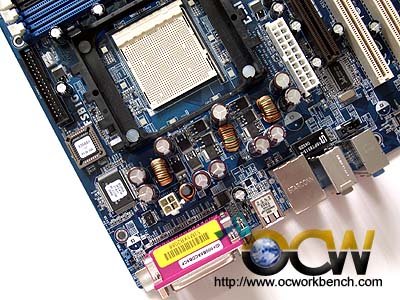

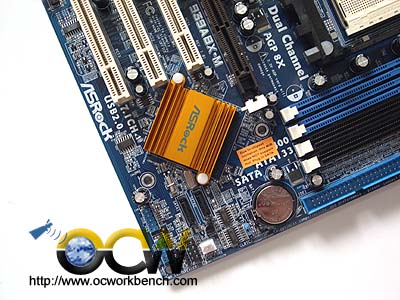

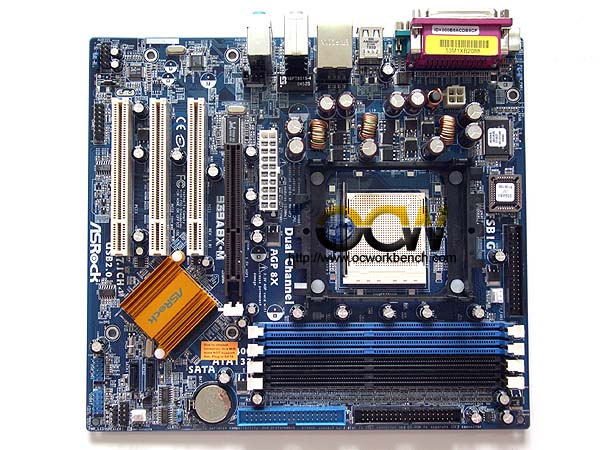

The board comes with 3 PCI, 1 AGP slot. Right on top of the AGP slot in the picture is the clock gen from Realtek. On the right you can see the 20 pin power connector + 4 pin connector. At the left hand bottom of the board are two external USB connectors (up to 4 USB external ports can be connected). The ULi M1689 chipset, CMOS jumper, 4 DIMM slots and the 2 SATA + 2 IDE ports.

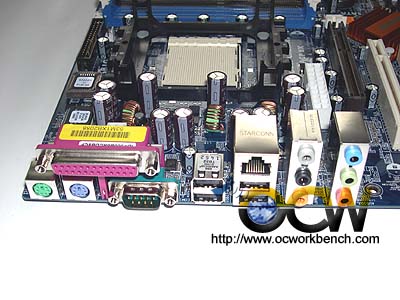

The back panel consists of PS/2 Keyboard and Mouse, COM1, Parallel port, 4 USB ports, 1 x Ethernet port and the audio ports.
