K8NF4G-SATA2 (C51G) Intro 4/5
Bluetooth 19 Sep 2005
BIOS I
 |
 |
|

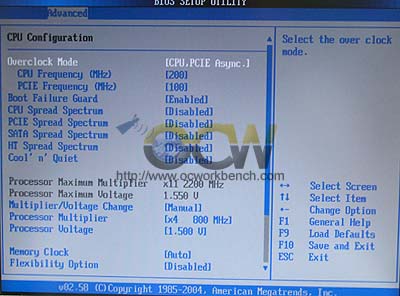

Similar to 939Dual-SATA2, we see some common options in
this selection window. When Overclock mode is set to CPU,PCIe ASync, all
PCI, PCIe are FIXED. CPU Frequency can be set fro 200~300, PCIe Freq can be
set from 100~148. Multiplier is adjustable from 4x ~ 25x |

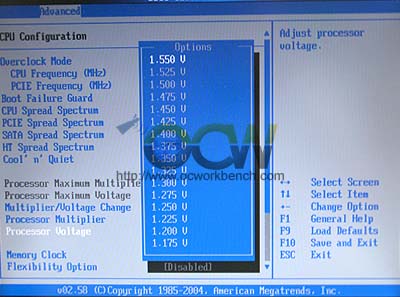

Processor voltage can be set up to 1.550v for my 3400+.
If you are using a Sempron processor, the max limit might not be the same. |
 |
 |
|

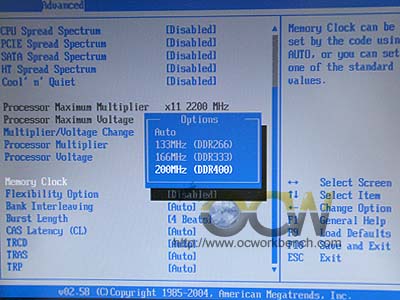

Memory Clk is where you can the CPU:RAM is running in
SYNC (DDR400) or ASync DDR333 or DDR266. |

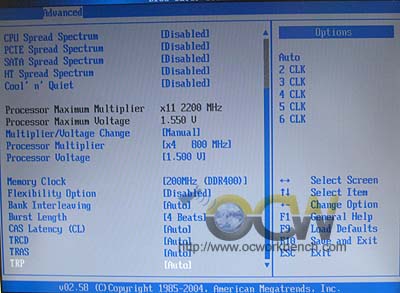

The CAS Latency, TRCD, TRP and TRAS should be quite
familiar to regular readers of OCW. This controls the ram timings. For our
RAM, it is defaulted to CAS 2, 5-2-2. For ram compatibility, you can turn
flexibility ON but this will reduce the perfomrance. |
|
|
|
