EPoX 5LWA+ i925XE Mainboard Intro 1/5
Bluetooth 10 May 2005

EPoX 5LWA+

EPoX 5LWA+ is EPoX's 925XE solution for the P4 (LGA775, FSB1066). The board supports the Intel® Pentium 4® 5xx and P4EE series processors up to 4.0+GHz in LGA775 socket with 533/800/1066 MHz front-side system bus, Intel® Celeron D® 3xx series processors up to 3.2+GHz in LGA775 socket with 533 MHz front-side system bus, Intel®  EM64T 64-bit Computing platform. The board comes with three PCI connectors compliant with PCI v2.3 two PCI-Express (x1) connectors compliant with PCI Express 1.0a, one PCI Express (x16) connectors compliant with PCI Express 1.0a.

The board uses DDR2 memory and supports up to four 240-pin DDR2 SDRAM DIMM sockets and support single-sided or double-sided, non-ECC, 1.8v DDR2-400/533 DIMMs with dual channel architecture in 256Mb/512Mb/1Gb technologies. 4 GB system memory is supported.

5LWA+ comes with expansion capabilities. They include one ATA66/100 connector for your legacy IDE device. The package comes with a converter which allows you to connect your old PATA to your SATA connectors. There are 8 USB ports altogether with extension brackets. The SATA ports supported by ICH6R offers 4 SATA ports up to 150MBps in RAID 0, 1 with Hot Plug support.

In terms of connectivity, the board supports two GbE LAN ports using PCI-E bus based Marvell 88EE8053 PCI-E chip. 2x 1394A is also supported using VIAs VT6307 controller. The audio controller is based on the ALC880 HD Audio complaint CODEC. It supports CD-In, S/PDIF-in and S/PDIF-out, Optical & Coaxial S/PDIF-out available on rear panel, Support Front panel audio for Mic-In and stereo Line-out only. (Front panel Line-out electrically shared with rear panel Line-out) and supports Jack detection for fool-proof audio device installation

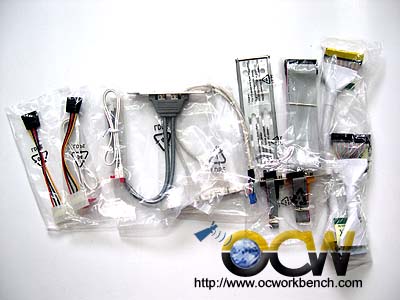

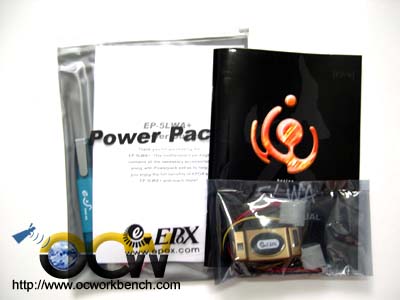

In the package, you can find the USB, Firewire brackets, back panel face plate, SATA power cables, IDE cables, SATA cables. In addition, there is a PATA->SATA converter bundled in the package. There is also a PowerPack you will see a heat sensor, a EPoX badget, SLI bridge, SATA power connector, small heatsinks, backplate and a screwdriver.



Specifications

Introduction
  Intel i925XE + ICH6R chipset, ATX size
FSB1066 / DDR2 533 / 8ch audio / 8 USB2.0 / PCI-E VGA / PCI-Ex1 / Dual GbE LAN / 4 SATA-RAID / 1394



Specification

  CPU Socket:
Support Intel® Pentium 4® 5xx and P4EE series processors up to 4.0+GHz in LGA775 socket with 533/800/1066 MHz front-side system bus
Support Intel® Celeron D® 3xx series processors up to 3.2+GHz in LGA775 socket with 533 MHz front-side system bus
Support Intel®  EM64T£p 64-bit Computing platform
Support Intel 04B or 04A Platform Compatibility Guide

Chipset:
Intel® 925XE + ICH6R

System Memory:
Four 240-pin DDR2 SDRAM DIMM sockets
Support single-sided or double-sided, non-ECC, 1.8v DDR2-400/533 DIMMs with dual channel architecture in 256Mb/512Mb/1Gb technologies
Support up to 4 GB system memory
Turbo Mode technology support under 1066/800 MHz FSB and DDR2-533

Expansion Slots:
Three PCI connectors compliant with PCI v2.3
Two PCI-Express (x1) connectors compliant with PCI Express 1.0a
One PCI Express (x16) connectors compliant with PCI Express 1.0a

IDE:
One IDE interface (up to 2 IDE devices) with UDMA-33, ATA-66/100 support from embedded IDE controller

USB:
Eight USB connectors compliant with USB2.0 from embedded USB controller (4 connectors at rear panel)

S-ATA RAID:
Four S-ATA ports with up to 150MBps bandwidth from ICH6R with RAID 0,1 support with Hot-Plug support

LAN:
Two Gb Ethernet from onboard Marvell 88E8053 PCI Express (x1) controller for Dual LAN with Virtual Cable Net-Diagnostic support

1394a:
Two 1394 ports with up to 400Mbps bandwidth from onboard VIA VT6307 1394 controller

Audio:
Selectable 2, 6 or 8-CH audio from onboard ALC880 Azalia compliant CODEC with 20-bit ADC and 24-bit DAC resolution
Support CD-In, S/PDIF-in and S/PDIF-out
Optical & Coaxial S/PDIF-out available on rear panel
Support Front panel audio for Mic-In and stereo Line-out only. (Front panel Line-out electrically shared with rear panel Line-out).
Support Jack detection for fool-proof audio device installation

I/O:
Onboard Winbond W83627THF(E) LPC bus I/O controller
Legacy peripheral interface for PS/2 keyboard & mouse, FDD, Parallel, Two Serial, Game and IrDA (v1.0 compliant), ¡K
Support Hardware Monitoring for fan speed monitoring, CPU/System temperature and ThermoStick temperature.
Intelligent fan speed control for CPU-fan (PWM) and Chassis-fan (DC) for quiet operation

BIOS:
4Mb Flash EEPROM with Award Plug&Play BIOS
Support ACPI S3 (Suspend To RAM) mode in ACPI compliant O/S
Support EZ Boot for fast bootable device selection
Support Magic Health for system hardware status report during system boot-up

Special Features:
Support KBPO (Keyboard Power ON) function
Support Wake-On-LAN by PME
Support USB resume in S3
Onboard Post-Port LED display
Support Asynchronous clocking mode between FSB and PCI/PCI-E

PowerBIOS for excellent overclocking features:
Programmable FSB and PCI Clock output frequency with 1MHz fine tuning
Support BIOS adjustable CPU multiplier & Core voltage, FSB clock, PCI-E x16 voltage & clock, Chipset voltage, DIMM frequency and voltage settings

Powerful utilities for Windows:
USDM (Unified System Diagnostic Manager) for system hardware monitoring
Magic Flash for BIOS update without requiring DOS flash utility and bootable diskette
Magic Screen for personal bootup screen design

Form Factor:
305mm x 245mm x 40mm, ATX Size

Accessories
User¡¦s manual
1 IDE round cables & 1 FDD cables; 2 S-ATA data and power cables;
Com + Game bracket
CD for drivers, utilities and bundle software
IO shield
SP-ATA

Discuss in Forum
