EPoX 5NVA+SLI (NF4 SLI Intel edition) Intro 1/5
Bluetooth 20 Aug 2005

Pricing of
7800GTX

>>>

Introduction

NF4 SLI chipset seems to be the most well accepted chipset of choice for most AMD users. A few months back, Nvidia announced that they will also make available a version of the highly acclaimed chipset to support SLI on the Intel Socket 775 platforms. EPoX 5NVA+ SLI is one of such boards that is built based on the NVIDIA nForce4 SLi Intel Edition chipset NVIDIA nForce4 SLi Intel Edition (C19) + MCP04. Those with NF4 SLI (AMD) boards should be quite familiar with what the single chipset offered. On the Intel front, the chipset comprises of a north and south bridge. Together they support the Intel FSB 1066 processors with EMT64. DDR2-667 is supported for future CPUs that could run at sync with memory at such high speeds of 333MHz (DDR2-667). It also supports a single 16 x PCIe slot or Dual PCIe x 8. The board' also support 8ch audio, 10 USB2.0, PCI-Ex1 / GbE LAN, 4 SATA II RAID and 1394, ActiveArmour and NV Firewall.

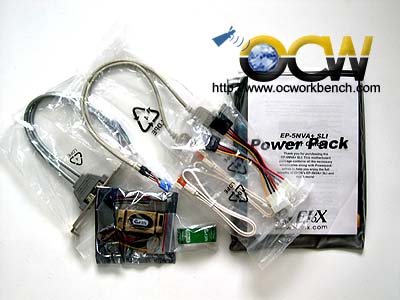

The BIOS also comes with Magic Health which shows temps at boot, EZboot for easy boot up from device and PowerBIOS for overclockers to tweak fsb, chipset, memory etc. The board also comes with 80 Debug Port, Quick SPDIF a onboard SPDIF out connector for quick connection to multi channel speakers. The EZ Button is a handy poweron button located on mainboard for easy turnon /off system, The LEDION is Onboard LED to show the power status CPU, Chipset and DRAM. The package also provides a thermo stick for monitoring temperature of devices like VGA card. SP-ATA is also provided, it is a SATA to IDE conversion device for plugging older IDE devices to SATA ports.

Specifications

Introduction

nForce4 SLi Intel Edition chipset, ATX size
FSB 1066 / DDR2 667 / PCI-E VGA / 8ch audio /
10 USB2.0 / PCI-Ex1 / GbE LAN / 4 SATA II RAID / 1394

Specification

CPU Socket:
Socket LGA775 for Intel® Celeron D® 3xx series, Intel® Pentium 4® 5xx/6xx series, P4EE up to 3.8+GHz
Support 533/800/1066 MHz front-side bus
Support Intel® EM64T£p 64-bit Computing platform
Support Intel 05B or 05A Platform Compatibility Guide

Chipset:
NVIDIA nForce4 SLi Intel Edition (C19) + MCP04

System Memory:
Four 240-pin DDR2 SDRAM DIMM sockets for maximum 8GB system memory
Support 1.8v DDR2-400/533/667 DIMMs with dual channel architecture
Support single-sided or double-sided, non-ECC DIMMs with 256Mb/512Mb/1Gb devices

Expansion Slots:
Two PCI connectors compliant with PCI v2.3
Two PCI-Express (x1) connectors compliant with PCI Express 1.0a
Two PCI Express (x16) connectors compliant with PCI Express 1.0a to support SLi technology
One Express Card connector compliant with PCI Express 1.0a

IDE:
Two IDE interface (up to 2 IDE devices) with UDMA-33, ATA-66/133 support from embedded IDE controller

USB:
Ten USB connectors compliant with USB2.0 from embedded USB controller (4 connectors at rear panel)

S-ATA RAID:
Four S-ATA II ports with up to 300MB/s bandwidth from MCP04 with RAID 0,1,0+1,5 support with Hot-Plug support

1394a:
Two 1394a ports with up to 400Mbps bandwidth from onboard VT6307 1394a controller

LAN:
1Gb Ethernet from onboard Vitesse VSC8201RX Gigabit Ethernet PHY.

Audio:
Selectable 2, 6 or 8-CH audio Realtek ALC850 AC¡¦97 v2.3 compliant CODEC
Support Aux-In, CD-In, S/PDIF-in and S/PDIF-out
Optical & Coaxial S/PDIF-out available on rear panel
Support Jack detection for fool-proof audio device installation

I/O:
Onboard Finetek F71872F LPC bus I/O controller
Legacy peripheral interface for PS/2 keyboard & mouse, FDD, Parallel, One Serial and IrDA (v1.0 compliant)
Hardware Monitoring for fan speed monitoring, CPU/System temperature and ThermoStick temperature.
Intelligent fan speed control for CPU-fan (PWM) and Chassis-fan (DC) for quiet operation

BIOS:
4Mb Flash EEPROM with Award Plug&Play BIOS
Support ACPI S3 (Suspend To RAM) mode in ACPI compliant O/S
Support EZ Boot for fast bootable device selection
Support Magic Health for system hardware status report during system boot-up

Special Features:
Support KBPO (Keyboard Power ON) function
Support Wake-On-LAN by PME
Support USB resume in S3
Onboard Post-Port LED display
Onboard LEDION LED indicators for VGA, DDR and CPU voltage
Onboard EZ-Button for convenient power-on
Support Asynchronous clocking mode between FSB and PCI/PCI-E

PowerBIOS for excellent overclocking features:
Programmable FSB and PCI Clock output frequency with 1MHz fine tuning
Support BIOS adjustable CPU multiplier, FSB clock, PCI-E x16 clock, DIMM frequency
Support BIOS adjustable CPU Core voltage, Chipset voltage, DIMM voltage settings

Powerful utilities for Windows:
USDM (Unified System Diagnostic Manager) for system hardware monitoring
Magic Flash for BIOS update without requiring DOS flash utility and bootable diskette
Magic Screen for personal bootup screen design

Form Factor:
305mm x 245mm x 40mm, ATX Size

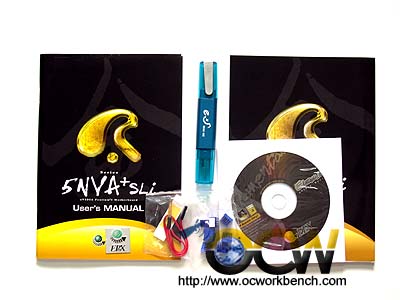

Accessories
User¡¦s manual

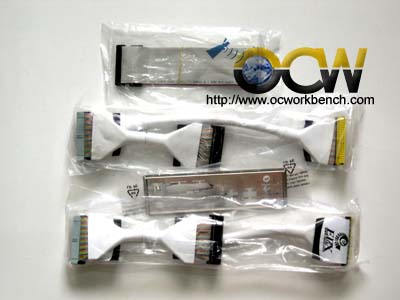

2 IDE round cable & 1 FDD cables;
2 S-ATA data and power cables;
CD for drivers, utilities and bundle software
IO shield

OS Supported:
Support Windows ®2000/XP (not Win98SE/WinME)
