Foxconn Winfast NF4K8MC-ERS NF4 Mainboard Gallery 1/4
Bluetooth 22 Feb 2004

Winfast NF4K8MC-ERS

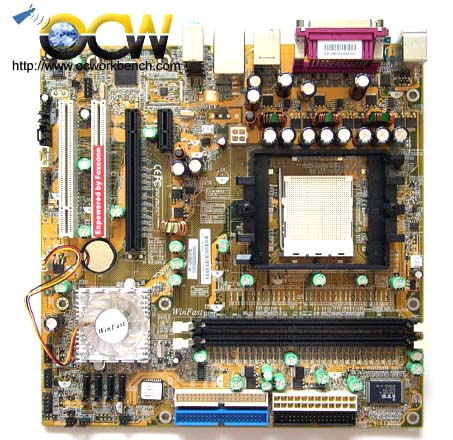

Foxconn has been increasing their presence in the Mainboard Market recently, particularly with AMD designs. Now they have produced a product based on the NF4 chipset, bringing one of the first NF4 microATX boards into the market.

This board, NF4K8MC-ERS is the little brother of NF4UK8AA-8EKRS which we reviewed some time ago. Some of the major difference between the two include the chipset used. As this NF4K8MC-ERS is based on the scaled down version of the NF4 chipset. This board supports 2 x DDR400, USB 2.0, PCI-Express x 16, 6 channel audio, 1394, Ethernet, SATA NVRAID.

As this is a microATX board, the board does not have complete overclocking features. The CPU FSB can only be adjusted up to 250MHz. Multiplier control is missing and there are no voltage adjustments for VDIMM, VCORE, Vhtt.

Specifications

Processor	AMD Athlon™ 64/Athlon 64 FX, Socket 939 (939-pin), 1600/2000MT/s

Chipset	NVIDIA nForce4 (CK8-04 Standard)

Memory	Dual channel, unbuffered, 2.5V DDR266/333/400, (2) 184-pin DIMM sockets, max 2GB

Graphics	Discrete (non-integrated) - use expansion slot

Expansion Slots	1 x PCI Express x16, 1 x PCI Express x1, 2 x PCI

IDE/ATA Support	2 x ATA/133 + 4 x SATA/150 (w/ RAID) Supports RAID 0, 1, and 1+0; cross-controller (IDE & SATA)

Audio	Integrated, 5.1 channel AC97 (Realtek)

LAN	Integrated Fast Ethernet (10/100) MAC + PHY

IEEE-1394	2; 1 x 6-pin in rear I/O area + 1 front via internal header; 1394a

USB	Up to 8; 4 in rear I/O area + 2 internal 2-port headers; ver. 2.0

Rear I/O Ports	1 x PS/2 keyboard 1 x PS/2 mouse 1 x RJ45 (LAN) 4 x USB 2.0 1 x line-in/line-out/mic (audio) 1 x parallel (SPP/ECP/EPP) 1 x COM (16550-compatible UART) 1 x IEEE-1394 2 or 4 ports USB 2.0 via cable/bracket from internal headers (shared w/ front)

Internal Connectors/Headers	1 x floppy disk drive Front audio header 1 x S/PDIF (coax out) header 2 x USB 2-port headers, ver. 2.0 1 x IEEE-1394 header

BIOS	4Mb flash EEPROM w/ LAN boot, PnP, ACPI, WfM, DMI 2.0,

Special Features	Wake-on-LAN (WOL), suspend-to-RAM (STR, S3), suspend-to-disk (STD, S4), SuperUtilities - SuperBoot, SuperBIOS-Protect, SuperRecovery, SuperSpeed, SuperStep, SuperLogo, and SuperUpdate

Overclocking Features	Adjustable bus speeds Adjustable memory timing

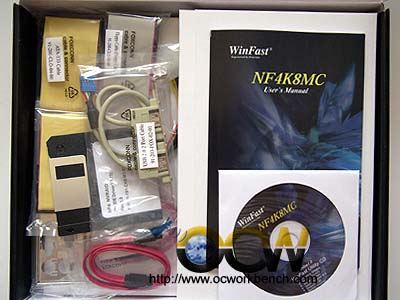

Accessories	Support CD, user's manual (or installation guide), rear I/O shield, 1 x floppy drive cable, 1 x HDD/ODD drive cable (supports UDMA/ATA 33/66/100/133 drives) RAID driver on floppy disk(s) 2 x SATA data cables, 1 x SATA power cable (supports 2 drives), 1 extra HDD/ODD drive cable (supports UDMA/ATA 33/66/100/133 drives) Rear cable/bracket assembly w/ 2 x USB 2.0 ports Processor heat sink retention mechanism

Form Factor	microATX, 9.6'' x 9.6'' or smaller - see User's Manual

Discuss in Forum
