Gigabyte 3D Galaxy Liquid Cooling System GH-WIU01
Bluetooth 8 Aug 2005

 Pricing of
7800GTX

>>>

Introduction

If you read our Computex 2005 coverage, you would probably have seen this kit before. It was unexpected that Gigabyte would venture into liquid cooling system. In the past, I did come across various brands of liquid cooling system but never had a chance to have a hands on. I find it too cumbersome to install and I am worried about possible leaks that might kill my system.

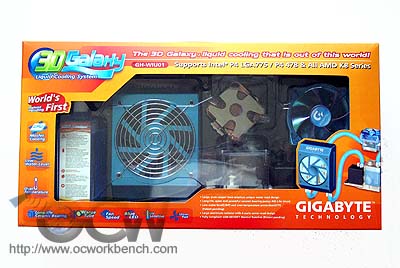

Lately, we received this package from Gigabyte without prior notice. It is the 3D Galaxy Liquid Cooling system. Upon opening it, I find many different parts for assembly to make it work. The package comes with a pure copper base, a ceramic bearing pump which is attached to a reservoir. The reservoir is where you hold the liquid coolant provided. It comes with Low water-level (LWP) and over-temperature protection (OTP). Clips are also provided for clipping the UV tubing to the pump and radiator. There is a holder that needed to be installed onto your casing for mounting the radiator

  • Large, pure copper base employs unique water road design
  • Long-life, quiet and powerful ceramic bearing pump
  • Low water-level (LWP) and over-temperature protection (OTP) (Patent pending)
  • Clear blue LED tank for straightforward coolant refilling
  • Large aluminum radiator with 4-parts water road design
  • Special aluminum fan cover enhances thermal dissipation
  • Radiator installs easily onto most PC chassis
  • Multi-purpose Nano-scale GIGABYTE coolant
  • 1/2 inch special UV tubing material allows for extreme angling and flexing
  • Fully compliant with MOSFET thermal function (Patent pending)
  • Optional thermal partner: Gigabyte chassis 3D AURORA (GZ-FSCA1-AN / GZ-FSCA1-SN)



Specification

Waterblock Dimensions 68 x 92 x 30 mm
  Material Cu base+ PC cover
  MOSFET Compliant Yes
Pump Dimensions 61 x 60 x 46 mm
  Maximum Capacity 400 L/hr
  Noise 20 dBA below
  Bearing Ceramic Bearing
Radiator Dimensions 125 x 197 x 64 mm
  Material Aluminum
  Fan size 120 x 120 x 25 mm
  Fan Connector 3 pin
Tank Dimensions 75 x 75 x 92 mm
  Capacity 300cc.
Tube Dimensions 1/2 inch
  Material PVC
Coolant Capacity 600cc.
  Color Lite Blue
Compatible CPU Intel Pentium 4 Processor 870/670/570 (3.8GHZ)
  Intel Pentium4 478 3.4GHz
AMD AthlonTM FX59 (939/754)
  AMD AthlonTM 64 4800+ (939/754)
