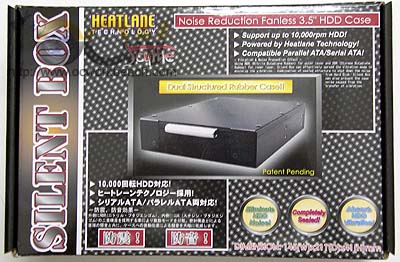

Scythe Silent Box Noise Reduction Fanless 3.5" HDD Case 1/3
Bluetooth 24 Jan 2004

Silent Box

Scythe attacks both heat and noise issue from your HDD

One of the main challenges to system builders is noise and heat generated from systems. Nowadays, users are always complaining about heat and noise from systems. The problem lies with that the fact, if you add fans, the noise level increases but heat level drops. The vice versa is true too.

Scythe has found a solution to this problem. Scythe releases Silenx BOX model SBX-1000 which serves this purpose. This enclosure fits all 3.5"HDD up to 10K rpm. As it uses a heatlane plate to dissipate the heat within the enclosure, there is no fan thus reduce the noise level. Heatlane is the original technology invented and provided by TS heatronics Co Ltd. Inside the "heatlane" plate runs a capillary tube through which special working fluid runs to transfer the heat all over the surface at a great rate. Unlike heatpipe method, the special circulation of the working fluid within "heatlane" allows it to realise effective heat transfer in horizontal or even "top to bottom" direction.

To prevent noise and vibration, Scythe uses NBR (nitrile Butadiene Rubber) for outer layer and SBR (Styrene Butadiene Rubber) for the inner layer. Silent Box can effectively spread the vibration mode to minimize the vibration. As the case is built using rubber, it won't break as easily compared to those plastic holders.





Model Name:
SBX-1000
Manufacturer:
Scythe Co., Ltd.
Compatibility:
3.5" IDE HDD up to 10,000rpm
Dimensions:
144 x 211 x 41 mm
Connector:
Ready for Serial & Parallel ATA
Cooling:
By Heatlane Plate
Material:
NB & BR Rubber Case & Aluminum Cover
Weight:
840g
