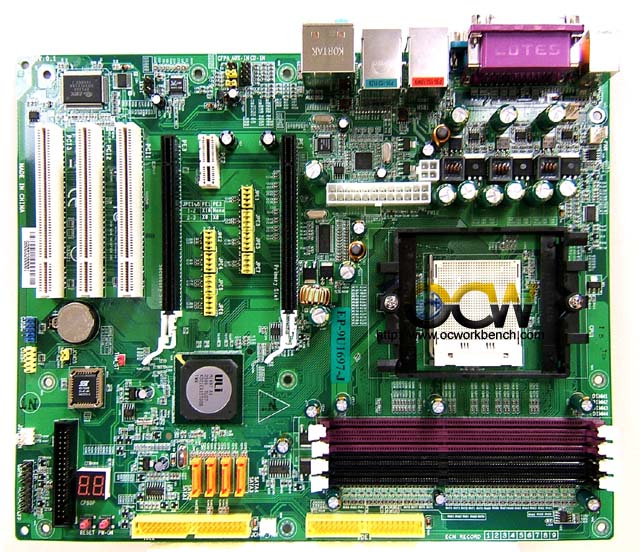

The board supports 2

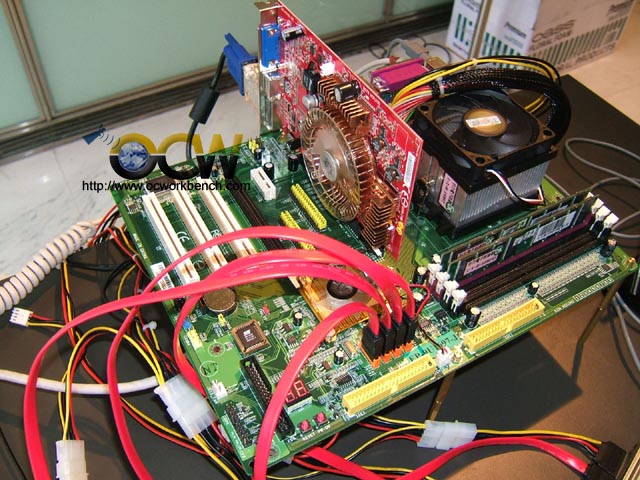

IDE channels and 4 SATA II 3Gb/s RAID 0,1,0+1,5 ports. There are 8 USB ports (4
via rear panel). There are two LAN ports, one Fast Ethernet and the other a GbE.
8 Channel Audio is also supported through ALC850. The board
also comes with 2 x PCIex16 slots, it should be able to be configured into 1 x
PCIex16 or 2 x PCIe x8. Will it be able to do SLI or CrossFire, that remains to
be seen.
EPoX has the tradition of making overclockable boards. Below are some of the
voltage adjustments you can make with this board.
Chipset voltage adjust Yes, 2V +0.1V - +0.2V
DDR voltage adjust Yes, 2.5V – 3.2V
CPU Vcore Yes, 0.8V – 1.75V
HT bus voltage Yes ; 1.2V~1.6V
HT clock adjust Max. 400MHz , HT ratio up fr X6
PCI-E speed range 100MHz – 200MHz
CPU Socket:
Support Socket-939 based AMD Sempron/Athlon-64/ Athlon-64 FX/ Athlon X2 ,
1.6/2.0GTs Hyper Transport processors with up to 4800+
Chipset:
ULi M1697
System Memory:
Four 184-pin DDR SDRAM DIMM sockets
Support single-sided or double-sided 2.5v DDR-333/400/500 DIMMs with dual
channel architecture in 128/256/512Mb technologies
Support Asynchronous clocking mode between FSB and DIMM
Support up to 4 GB system memory
Expansion Slots:
Three PCI connectors compliant with PCI v2.3
One PCI-Express (x1) connectors compliant with
PCI Express 1.0a
Two PCI Express (x16) connector compliant with PCI Express 1.0a
IDE:
Two IDE interface (up to 2 IDE devices) with UDMA-33, ATA-100/133 support from
embedded IDE controller
USB:
Eight USB connectors compliant with USB2.0 from embedded USB controller (4
connectors at rear panel)
S-ATA RAID:
Four S-ATA II ports with up to 300MB/s from chipset with RAID 0,1,0+1,5
LAN:
One 10/100 Ethernet from Realtek RTL8201CL
One Gigabit Ethernet from Marvell 88E8053 (Colayout with 8055/8036) for 9U1697-J
Audio:
Selectable 2, 6 or 8-CH audio Realtek ALC850 AC’97 compliant CODEC
Support Aux-In, CD-In
Optical & Coaxial S/PDIF-out available on rear panel
Support Jack detection for fool-proof audio device installation
I/O:
Onboard EPoX EP-1308 LPC bus I/O controller
Legacy peripheral interface for PS/2 keyboard & mouse, FDD, Parallel, One Serial
and IrDA (v1.0 compliant)
Hardware Monitoring for fan speed monitoring, CPU MOS and System temperature.
Intelligent fan speed control for CPU-fan (DC) and Chassis-fan for quiet
operation
Special Features:
Support KBPO (Keyboard Power ON) function
Support Wake-On-LAN by PME
Onboard Post-Port LED display
Onboard EZ-Button for convenient power-on
Support Thermal Stick (Cable for optional)
Support Asynchronous clocking mode between HT frequency and PCI/PCI-E
PowerBIOS for excellent overclocking features:
Programmable FSB and PCI Clock output frequency with 1MHz fine tuning
Support BIOS adjustable CPU multiplier, FSB clock, PCI-E x16 clock, DIMM
frequency
Support BIOS adjustable CPU Core voltage, Chipset voltage, DIMM voltage settings
Powerful utilities for Windows:
Thunder Probe for system hardware monitoring
Magic Flash for BIOS update without requiring DOS flash utility and bootable
diskette
Magic Screen for personal bootup screen design
