775Dual-VSTA (VIA PT880 Pro) Intro 1/4
Bluetooth 10 Jul 2006
|
Pricing
of
775Dual-VSTA
>>> |
|
Introduction
Latest :
4CoreDual-VSTA is a newer version of this board is released and it supports Quad
Core QX6700. Read t exclusive review at this link
http://www.ocworkbench.com/2006/asrock/4coredual-vsta/g1.htm
The Dual series is really a
very good choice for those who still owns an older AGP card. Last August, we
reviewed the first such board for the Pentium 4 LGA775. It was the
775Dual-880Pro. One year later, ASRock reintroduces an improved version of this
board based on the same VIA PT880 Pro chipset. This mainboard is similar to the
775Dual-880, it supports both AGP and PCIe interfaces. It can
also hook up to 4 monitors to do surround video.
In additional to supporting both graphics interface standards, it also support
up to 2 slots of DDR2-667 or 2 slots of DDR400 memory. The chipset used
supports all series of Intel LGA775 CPUs including the highest end Intel Core2
Duo Extreme (Conroe), the X6800 that runs clks 2.93GHz (1066FSB).
This new version also is VISTA
Ready and comes with HDA 8ch audio using ALC888 codec. The board also comes with
a HDMI_SPDIF connector which allows audio to be output through a HDMI graphics
card. Using 8237A south bridge, it supports SerialATA 1.5Gb/s, RAID 0,1, JBOD,
SATA HDD Hotplug, plus 2 ports of ATA 133. There is also 10/100 PCI Ethernet LAN
on board.
For those who loves mild
overclocking, the board has options to fix the PCI and PCIe bus so that it won't
be affected by the overclocking of the FSB.
|
CPU |
- LGA 775 for Intel® Dual Core Pentium®
XE and Pentium® D / Pentium® 4 / Celeron®
D, supporting Conroe, Presler and Cedar Mill processors
- FSB 1066/800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU |
|
Chipset |
- Northbridge: VIA PT880 Pro
- Southbridge: VIA VT8237A |
|
Hybrid Booster |
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.) |
|
Memory |
- Dual Channel DDR/DDRII memory technology
- 2 x DDRII DIMM slots
- Supports DDRII667/533
- Max. capacity: 2GB
- 2 x DDR DIMM slots
- Supports DDR400/333/266
- Max. capacity: 2GB |
|
Slots |
- 4 x PCI slots
- 1 x PCI Express Graphics slot
- 1 x AGP slot |
|
VGA |
- n/a |
|
Audio |
- Realtek ALC888 7.1channel audio CODEC with High
Definition Audio |
|
LAN |
- VIA PHY VT6103
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN |
|
Connector |
- 2 x Serial ATA 1.5 Gb/s connectors, support RAID
(RAID 0, RAID 1, and JBOD) and Hot Plug functions
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Game header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
|
Rear Panel I/O |
HD 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone |
|
BIOS Feature |
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support |
|
Support CD |
- Drivers, Utilities, AntiVirus Software (Trial
Version) |
| Hardware
Monitor |
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Overheat Shutdown to Protect CPU Life
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore |

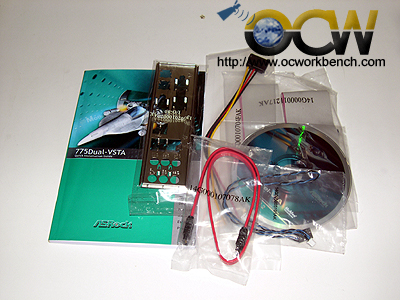

| Accessories |
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x HDMI_SPDIF cable (optional) |
| Form Factor |
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| OS |
- Microsoft Windows 2000 / XP / XP 64-bit / Vista™
compliant |
|
Certifications |
- FCC, CE, WHQL |
