ASRock AM2NF6G-VSTA AM2 board (NF6100-405) Review Intro 2/5

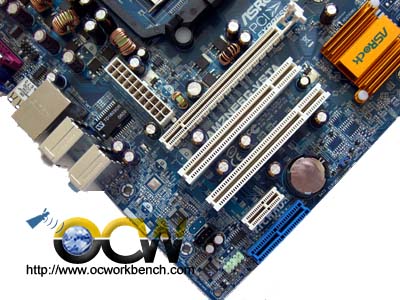

The board comes with 2 PCI, 1 HDMR slot, 1 PCIex1 and 1 PCIex8 slot for external VGA card. On the top left you would see audio codec ALC888, Realtek Fast Ethernet RTL8201 chip.

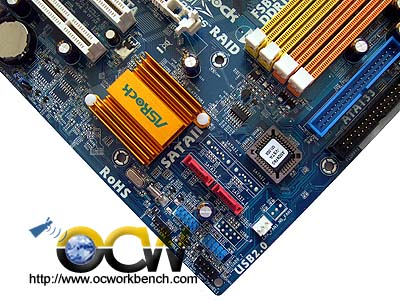

At the bottom left, you will see the 2 SATA II ports and 1 IDE channel supported by the NF6100-405 chipset. On its left are the USB connectors. On its right is the BIOS 4M chip. ON the right are 4 DIMM slots supporting up to a total of 8GB of memory using DDR2-533/667/800.

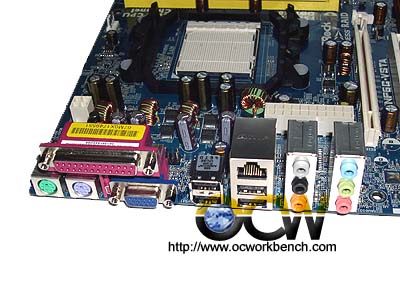

The back panel consists of PS/2 Keyboard and Mouse, 1 LPT, 1 VGA, 4 USB ports, Fast Ethernet and 7.1 ch audio ports.
