ASRock ConRoe945G-DVI (Intel 945G) Review Intro 1/4
Bluetooth 4 Aug 2006

 Pricing of
7800GTX

>>>

Introduction

Readers are really spoilt for choice. ASRock now delivers yet another board for that supports the Core 2 Duo/Extreme processor. The model is ConRoe945G-DVI. This board is based on the proven Intel 945G chipset. It supports supports FSB 1066/800/533 MHz processor, EM64T CPU and H-T Technology. For DDR2 memory, it supports Dual Channel DDRII667/533 x 4 DIMM slots with max. capacity up to 4GB. As 945G is an integrated graphics chipset, it comes with Intel® Graphics Media Accelerator 950, Pixel Shader 2.0, DirectX 9.0 and Max. shared memory 192MB. The board also comes with 1 x PCI Express x16 slot, 1 x PCI Express x1 slot.

On top of all these, ConRoe945G-DVI comes with support for Gigabit LAN 10/100/1000 Mb/s and has a Dual VGA Output: support DVI-D and D-Sub ports with DVI Graphics-SI card by independent display controllers . It also has 4 SATA II 3.0Gb/s connectors, 7.1 Ch Vista™ Premium level HD Audio (ALC888 Audio Codec). The board is Windows® Vista™ Premium Logo Hardware Ready. For those who wants to have some o/c, as usual, the board comes with Hybrid Booster - Safe Overclocking Technology and the Untied Overclocking : During Overclocking that allows higher FSB due to fixed PCIE/ PCI Buses





Specs

CPU - LGA 775 for Intel® Core™ 2 Duo/ Pentium® XE / Pentium® D / Pentium® 4 / Celeron® D, supporting Conroe processors
- FSB 1066/800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset - Northbridge: Intel® 945G
- Southbridge: Intel® ICH7
Hybrid Booster - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Memory - Dual Channel DDRII memory technology
- 4 x DDRII DIMM slots
- Supports DDRII 667/533
- Max. capacity: 4GB
Slots - 2 x PCI slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 1 x HDMR slot
VGA - Intel® Graphics Media Accelerator 950
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 192MB
- Dual VGA Output: support DVI-D and D-Sub ports with DVI Graphics-SI card by independent display controllers
Audio - Realtek ALC888 7.1channel CODEC with High Definition Audio
LAN - Gigabit LAN 10/100/1000 Mb/s
- PCIE x1 Realtek RTL8111B
- Supports Wake-On-LAN
Connector - 4 x Serial ATAII 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O HD 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
BIOS Feature - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

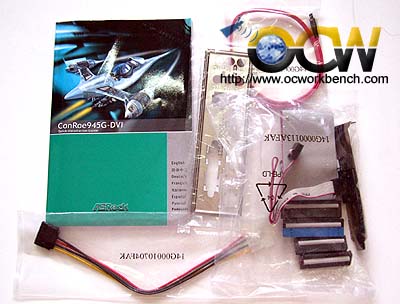

Accessories - Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 100 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x COM port bracket
- 1 x HDMR card (optional)

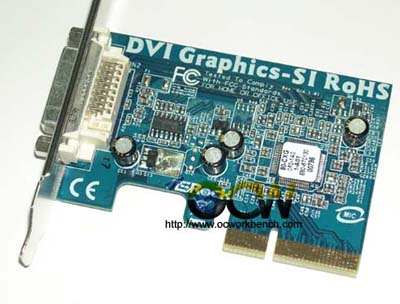

- 1 x DVI Graphics-SI card
Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS - Microsoft® Windows® 2000/XP/XP 64-bit/Vista™ compliant
Certifications - FCC, CE, WHQL
