OCWORKBENCH - ASUS EAX1950PRO (ATi X1950 Pro) Graphics Card Review 1/8
Bluetooth 18 Oct 2006

 Pricing of
X1950 XTX

>>>

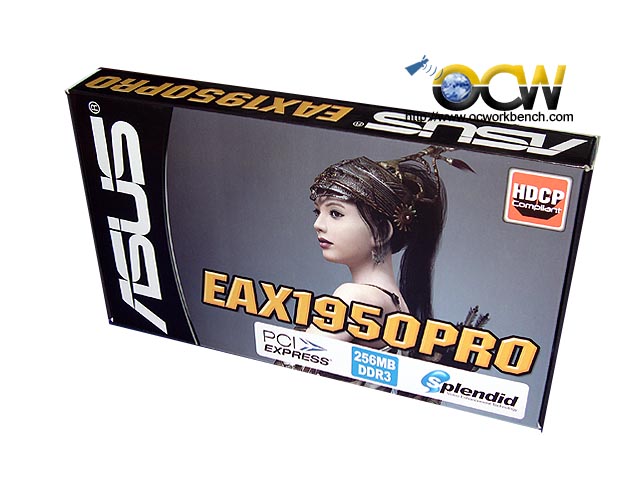

ASUS EAX1950Pro

ATi announced the X1950 Pro on 17 Oct 2006. ASUStek is one of the first to deliver their X1950 Pro graphics card. If you haven't read about the ATi X1950 Pro, you can read our article on ATi's X1950 Pro here.

Advanced Fan Sink on ASUS EAX1950PRO Series Lowers GPU Temperature to Provide Stable Performance

ASUSTeK Computer Inc. (ASUS), the leading provider of graphics solutions, today introduced the ASUS EAX1950PRO graphics card series, which features an advanced fan sink that lowers temperature by 10°C compared to reference designs. The all-new series balances high performance and stability, and packs the latest specifications to support the next-generation Vista operating system. The EAX1950PRO series includes two excellent solutions: EAX1950PRO CrossFire/HTDP/256M and EAX1950PRO/HTDP/256M.

Stylish cooling
The EAX1950PRO series, based on ATI’s Radeon X1950PRO GPU, incorporated a new fan sink design that provides effective heat dissipation while serving aesthetics purposes as well. With unique embedded heat pipes not found in computing solutions, and blower fan that guides cool air towards the fins, the EAX1950PRO Series lowers temperature by 10°C compared to competing graphics cards that made no improvements from reference designs.

The smooth contour and elegant curves of the fan sink further make the graphics card series perfect for gamers that demand their system to perform well and look good at the same time.

CrossFire Ready
The new EAX1950PRO series supports ATI’s CrossFire Technology, which allows multiple GPU to operate simultaneously for enhanced video performance. Superior graphics quality is easily achievable with the EAX1950PRO CrossFire/HTDP/256M and EAX1950PRO/HTDP/256M installed in the same system under CrossFire mode

HDCP and Windows Vista™ ready
To stay in step with Windows Vista requirements, the EAX1950PRO series features HDCP technology to give users peace of mind when upgrading their systems to support high-definition digital contents and a wide range of premium graphics applications.

Splendid Video Intelligence Technology
The new EAX1950PRO series supports Splendid Video Intelligence Technology, an exclusive feature found only on ASUS solutions. With Splendid, images enabled by ASUS graphics cards are fine tuned to deliver vibrant visual representations in conditions most favorable to the human eye.

Splendid detects activation and usage of video applications and automatically optimizes image quality for the best visual results, and further provides five modes (Standard, Game, Theater, Scenery and Night) and three skin tone options for various video applications. Splendid works on top of ATI's Avivo tm technology to offer sharp decoded video.

Hardware Specification



Model

EAX1950PRO CrossFire/HTDP/256M

EAX1950PRO/HTDP/256M
Graphics Engine

RADEON X1950PRO

RADEON X1950PRO
Video Memory

256MB DDR3

256MB DDR3
Engine Clock

581MHz

581MHz
Memory Clock

1.4GHz (702MHz DDR3)

1.4GHz (702MHz DDR3)
Memory Interface

256-bit

256-bit
Max. Resolution

2048 X 1536

2048 X 1536
Bus Standard

PCI Express X16

PCI Express X16
VGA Output YES, via DVI to VGA Adapter YES, via DVI to VGA Adapter
HDTV Output

YES, S-Video to HDTV Out

YES, S-Video to HDTV Out
TV Output

YES, S-Video to Composite

YES, S-Video to Composite
DVI Output DVI-I DVI-I
Dual DVI Output

YES

YES
HDCP Compliant YES YES

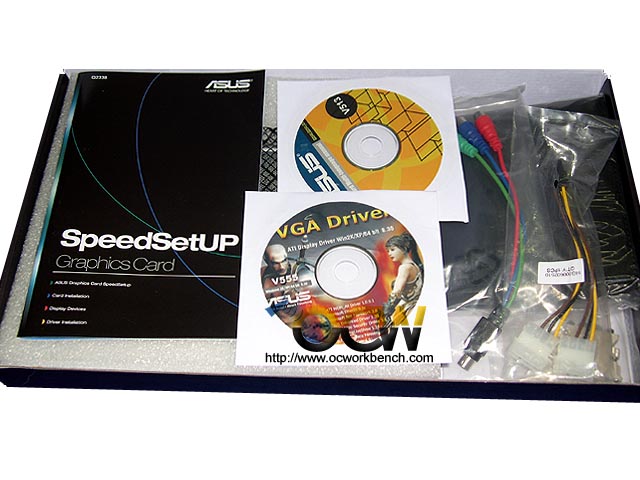

Adaptor/Cable Bundled DVI to VGA adapter
HDTV-out cable
Power Cable
CrossFire Interconnector x 2
DVI to VGA adapter
Power Cable
HDTV-Out Cable
Software Bundled ASUS Utilities & Driver ASUS Utilities & Driver
