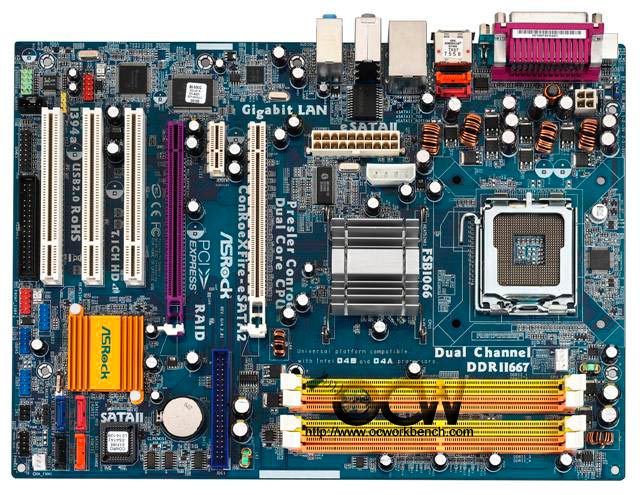

ASRock ConRoeXFire-eSATA2 R2.0 is based
on the 945P chipset and supports 1066/800/533 MHz processor, EM64T CPU and H-T
Technology Dual Core Pentium® D / Pentium® 4 / Celeron® D, supporting
CoreTM 2 Duo Desktop (Conroe), Presler and Cedar Mill processors.
It incorporates the AGI Express technology
that allows CrossFire to run on this board. This board also feature 1394 and
GbE. 4 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID
10, RAID 5 and Intel Matrix Storage), NCQ, AHCI and "Hot Plug" functions, 2
eSATA II ports and 1 ATA100 IDE port. It has HDMI_SPDIF header, providing SPDIF
audio output to HDMI VGA card, allows the system to connect HDMI Digital
TV/projector/LCD devices and has 7.1 Channel with High Definition Audio.
- LGA 775 for Intel®
- Intel 945P Chipset
- Supports FSB 1066/800/533 MHz processor, EM64T CPU and H-T Technology
Dual Core Pentium® D / Pentium® 4 / Celeron® D, supporting CoreTM 2 Duo Desktop
(Conroe), Presler and Cedar Mill processors
- Untied Overclocking : During Overclocking, FSB enjoys better margin due to
fixed PCIE/ PCI Buses
- Supports Dual Channel DDRII667/533 x 4 DIMMs, with max. capacity up to 4GB
- Supports ATI CrossFireTM
- PCI Express x 16 slot
- Additional AGI Express slot to adopt 2nd PCI Express x 16 VGA card, and other
PCI Express x4, x2, x1 interface cards
- PCI Express x 1 slot
- Hybrid Booster - Safe Overclocking Technology
- Supports Gigabit LAN 10/100/1000 Mb/s
- Supports 2 x IEEE1394 headers
- 4 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10,
RAID 5 and Intel Matrix Storage), NCQ, AHCI and "Hot Plug" functions, and 1
ATA100 IDE port
- 2 x eSerial ATAII 3.0 Gb/s connectors (shared with 2 SATAII ports), support
"Hot Plug" function
- HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the
system to connect HDMI Digital TV/projector/LCD devices.
- 7.1 Channel with High Definition Audio
- Windows VistaTM
Premium Logo Hardware Ready
- ASRock 8CH_eSATAII I/O: 2 eSATAII ports, 2 ready-to-use
USB ports
