ECS 945GTY-M MoDT (S479) Intel 945GT Review Intro 2/5
Bluetooth 8 Sept 2006

 Pricing of
ECS 945G

>>>

Gallery

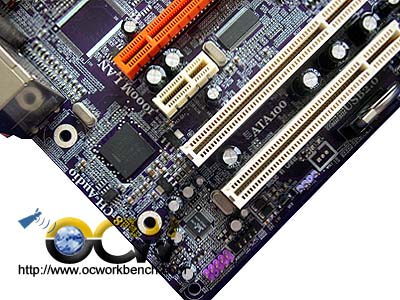

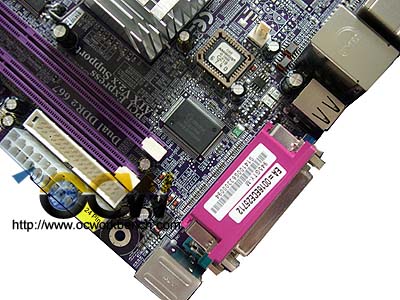

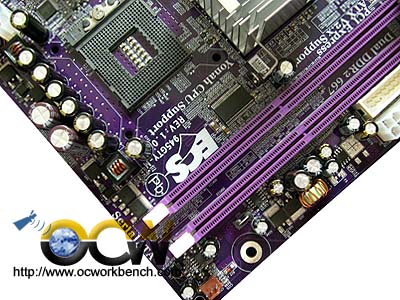

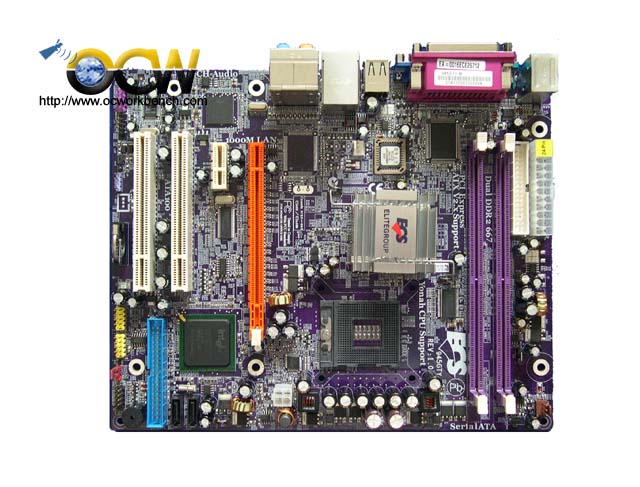

It comes with 2 DDR2 DIMM slots supporting DDR2533/667 DIMM it can install up to 4GB of memory. In terms of expansion slots, the board comes with 2 PCI, 1 PCIe x16 and 1 PCIe x 1.  Behind the PCIe x1 is the GbE controller . On it left is the ALC 883 HD Audio codec. The PCIe x16 slot is orange in colour.

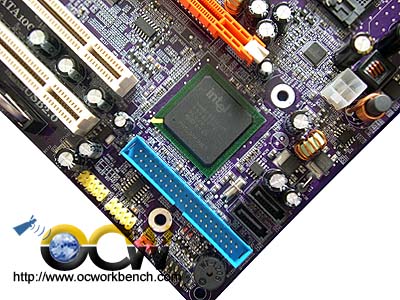

On the bottom left of the mainboard are the yellow USB 2.0 connectors for external brackets. There is one IDE channel and 2 SATAII ports supported by the south bridge. At the centre is the north bridge and next to it the CPU socket.

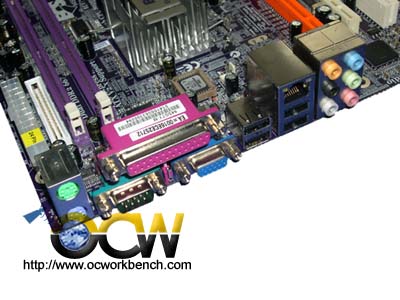

At the rear of the mainboard are the PS/2, Keyboard, VGA  LPT1, COM, GbE, 4 USB, audio ports.
