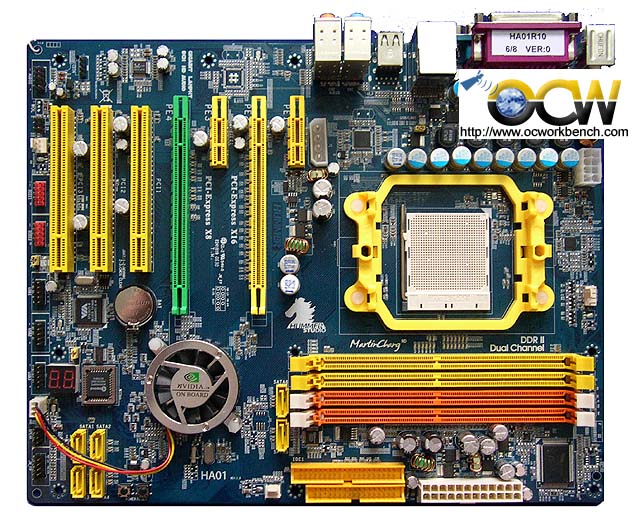

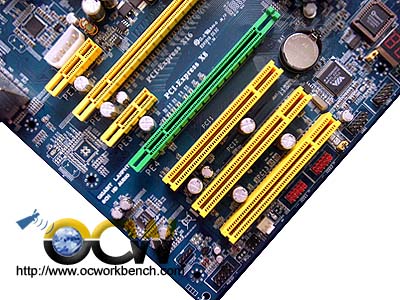

The HA01-SDGE is based on the MCP 550 single chip. It comes with 3 PCI slots, 2 PCIex1, 2 PCIex16 slots (which can run in a single 16x or dual 8x mode. Right behind the PCI slots are the Realtek Audio codec, GbE controller.

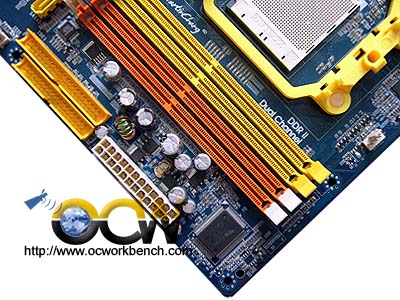

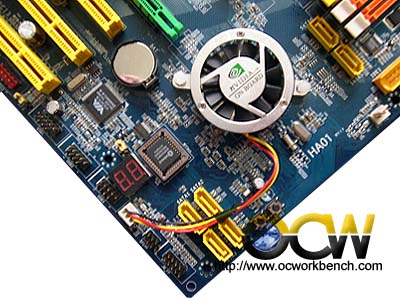

At the bottom of the board, we see 4 DIMM slots supporting up to 4GB of DC-DDR2-800. There is 1 IDE channel and 6 SATA II ports in RAID 0,1,0+1 array. Near the 2 PCI slot is the VIA 1394 controller chip and red 1394 connectors on the side of PCI slot 3.

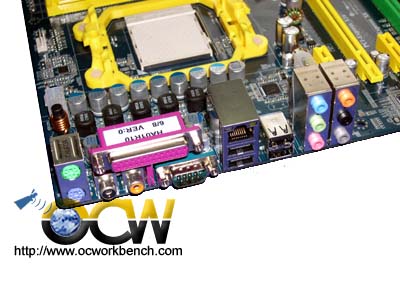

The back panel consists of PS/2 Keyboard and Mouse, 1 Com ports + 1 Parallel port, Coaxial S/PDIF, 4 USB ports, 1 x GbE LAN port and 8 ch audio ports.
