ASRock 4Core1333-Viiv 965P/ICH8DH Mainboard Review Intro 2/5
Bluetooth 2 Jul 2007

Pricing of
NV 8600GT

>>>

Gallery

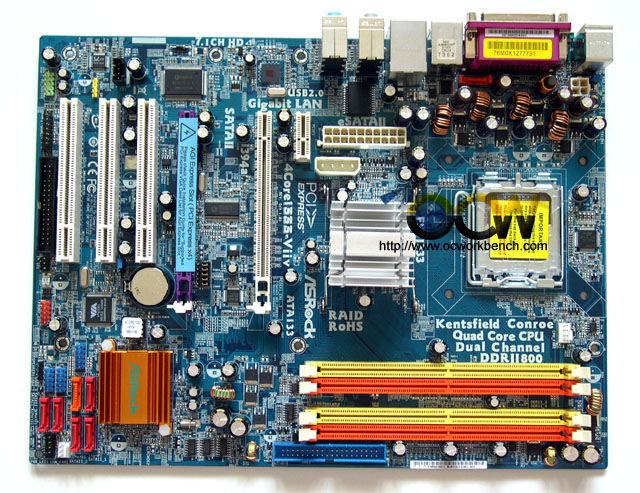

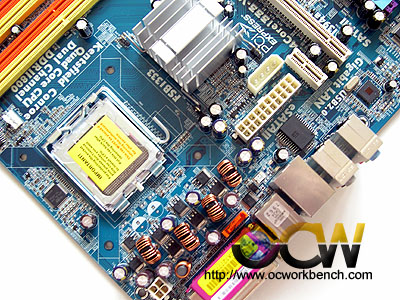

The board comes with 3 PCI, 1 PCIe x1, 1 PCIe x 4 and 1 PCIe x16 slot. On the top left corner of the board, you will see the Realtek HD audio Codec and Intel GbE PHY on its right. At the centre is the 20pin power connector and the I/O controller. To its right is a 4 phase power with a 4 pin AUX power. At the centre is the north bridge with a heatsink attached.

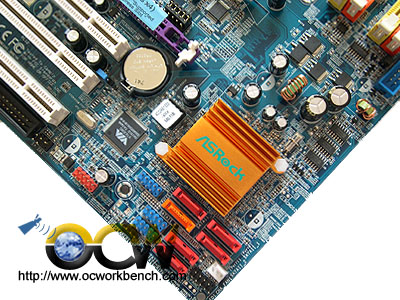

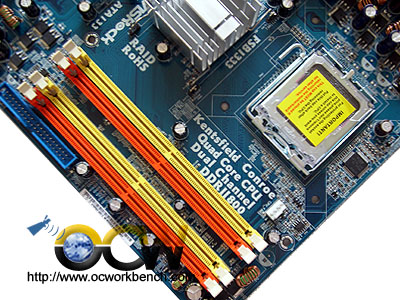

At the bottom left corner you will see the 4 red SATA II connectors controlled by the ICH8DH south bridge. The two other orange ones are controlled by the Jmicron chip. One of the ports can be conceted by sata cable to the rear of the mainboard for eSATAII support. Next to the south bridge, you can see the VIA IEEE 1394 controller chip. On the right are 4 DDR2 DIMM slots supporrting up to 4 pc of DDR2-800. Total memory supported : 8 GB

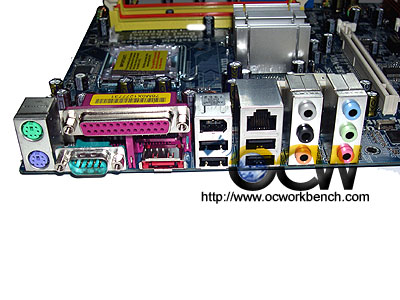

On the back panel, you will find the PS/2 Keyboard and Mouse, COM1, LPT1 port, 4 USB, 1 1394, 1 GbE and 7.1 ch audio ports.
