Introduction
ASRock ALiveNF5-eSATA2+ is the equivalent of the popular
ConRoeXFire-eSATA2 on the Intel platform. This new board uses a new chipset from
NVIDIA. We were not aware of this chipset until we saw this board. The chipset
is NF520.
NF520 is NVIDIA's new incarnation for cost down single chip
solution for the Am2 platform. It is quite confusing as what does the chipset
support. This chart might help to clarify the confusion. In fact it is the
little brother of the NF550 chipset.
The ALiveNF5-eSATA2+ supports the full range of AM2
processors including the FX, X2, 64, Sempron. It is AMD LIVE! Ready, supports
CnQ. It supports a HT of 1GHz and has overclocking features. The board supports
4 DIMM slots with up to a max of 16GB of DDRII-800/667/533.
In terms of functions, the board supports 7.1ch HDA
which i Windows Vista Premium Level certified. It also uses a RTL 8111B GbE.
In terms of connectivity, there are 4 x SATAII 3.0 Gb/s
connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ, AHCI
and "Hot Plug" functions. There are also 2 x eSATAII 3.0 Gb/s connectors (shared
with 2 SATAII ports), support NCQ, AHCI and "Hot Plug" functions. The NF520 also
support 1 x ATA133 IDE connector (supports 2 x IDE devices). On board is the
IEEE 1394 controller by TI which supports 2 x 1394 headers which can be
connected thru a bracket. Free Bundle: USB+1394 bracket, providing 2 additional
USB 2.0 ports and 1 IEEE 1394 port. The board also comes with a 1 x HDMI_SPDIF
header for routing the HDA to your HDMI graphics card so that audio can be
channeled out to the LCD TV.
Cool features isn't it.
Specs
| General |
| CPU |
- Socket AM2 for AMD Athlon™ 64FX /
64X2 / 64 and Sempron processors
- AMD LIVE!™ Ready
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology |
| Chipset |
- NVIDIA® nForce 520 |
| Memory |
- Dual Channel DDRII memory technology
- 4 x DDRII DIMM slots
- Supports DDRII800/667/533
- Max. capacity: 16GB*
|
| BIOS |
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support |
| Audio, Video and Networking |
| Graphics |
- n/a |
| Audio |
- 7.1 CH Windows® Vista™ Premium Level HD
Audio (ALC888 Audio Codec) |
| LAN |
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B
- Supports Wake-On-LAN |
| Expansion / Connectivity |
| Slots |
- 3 x PCI slots
- 1 x PCI Express x16 slot
- 2 x PCI Express x1 slots |
| Connector |
- 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ, AHCI and "Hot Plug" functions
- 2 x eSATAII 3.0 Gb/s connectors (shared with 2 SATAII ports), support NCQ,
AHCI and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Game header
- 1 x HDMI_SPDIF header
- 2 x IEEE 1394 headers
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 4 x USB 2.0 headers (support 8 USB 2.0 ports) |
| Rear Panel I/O |
ASRock 8CH_eSATAII I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 2 x Ready-to-Use USB 2.0 Ports
- 2 x eSATAII Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone
Free Bundle: USB+1394 bracket, providing 2 additional USB 2.0 ports and 1
IEEE 1394 port |
| Other Features / Miscellaneous |
|
Hybrid Booster |
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance
up to 12.5% |
| Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version) |
| Accessories |

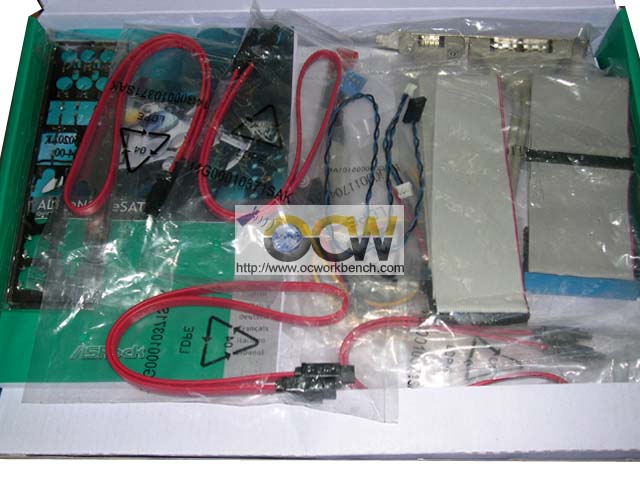

- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
- 4 x SATA data cable (optional)
- 2 x SATA 1 to 1 power cable (optional)
- 1 x HDMI_SPDIF cable (optional)
- 1 x USB+1394 bracket |
| Hardware Monitor |
- CPU Internal Temperature Sensing
- CPU Ambient Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore |
| Form Factor |
- ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm |
| OS |
- Microsoft® Windows® 2000 / XP /
XP Media Center / XP 64-bit / Vista™ / Vista™ 64-bit compliant |
| Certifications |
- FCC, CE, WHQL |
