Introduction of DFI LP UT 790FX-M2R AMD 790FX chipset mainboard Review
Bluetooth 26 Nov 2007

Introduction



DFI has been quiet for sometime as it was a bit late to market it's Intel series of boards. Anyway, for the AM2+, DFI is quick to respond with their top tier Lanparty series, the 790FX-M2R.

The platform entirely supports AMD's Quad-core processor, Phenom (FX) series. 790FX provides the latest version of Hyper Transport 3.0 for accelerating the CPU; LP UT 790FX-M2R features the highest performance chipset 790FX and SB600 as the NB and SB. In addition, DFI brings you an ultra-performance OC platform with the utmost features such like Digital PWM, Bernstein Audio module and advance heat pipe + Transpiper.



DFI 790FX can support a total of 3 CrossFire VGA cards at the same system anytime. LANParty UT 790FX-M2R provides a brand new FSB technology, the Hyper Trsansport3.0, which maximizes the bandwidth up to 41.6GB/s. This is a very significant functionality while CrossFire is at working. It needs a wider and faster bandwidth to accelerate the data transportation.

On board is a 7-phase PWM, which contains 6-phase for processor and a particularly 1-phase for Northbridge. The extra 1-phase PWM is an independent electricity power to support Northbridge. That makes the overclocking ability more flexible in voltage options.

DFI LP UT 790FX-M2R has equipped the powerful weapon ”Transpiper” too; a heat pipe sub- assembly, an extended design from Southbridge, Northbridge and now to PWM. The design of it is unique to any others in market. The, Transpiper serves as an extension joint to carry the heat out from the chassis. The Transpiper can be extended to the outside of the PSU fan.

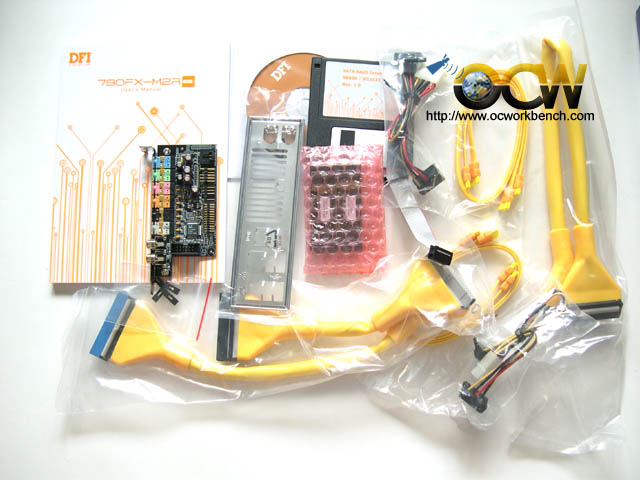

The package

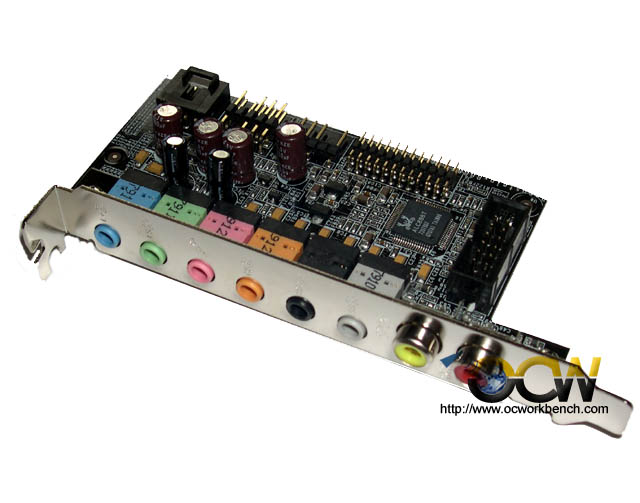

Bernstein Audio module

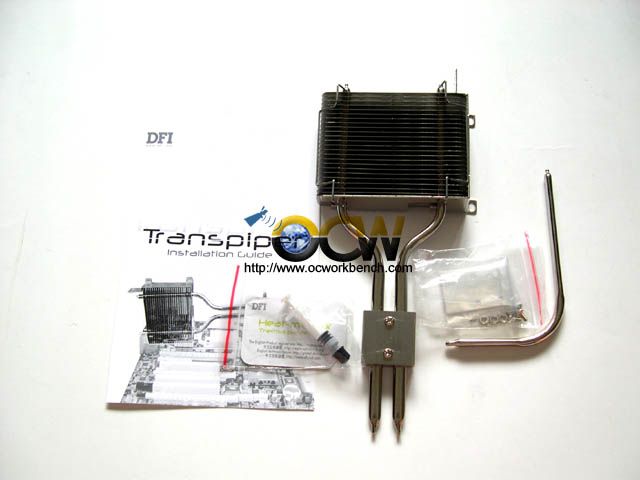

Transpiper serves as an extension joint to carry the heat out from the chassis. The Transpiper can be extended to the outside of the PSU fan.
