Gigabyte GA-MA69G-S3H (AMD 690G) mainboard review

	<![if lt IE 4]> <SCRIPT SRC="http://imgserv.adbutler.com/adserve/;ID=131075;size=468x60;setID=61435;type=js" LANGUAGE="JAVASCRIPT"> </SCRIPT> <NOSCRIPT> <a href="http://imgserv.adbutler.com/go2/;ID=131075;size=468x60;setID=61435"> <img src="http://imgserv.adbutler.com/adserve.ibs/;ID=131075;size=468x60;setID=61435;type=img" border="0" height="60" width="468"></a> </NOSCRIPT><![endif]>
中文版 \| News \| Archives \| Reviews \| Forum \| $ Deals \| Links \| History \| Contact \| Privacy

Gigabyte GA-MA69G-S3H (AMD 690G) mainboard review - Specifications
Bluetooth 29 Apr 2007

Pricing of Gigabyte GA-MA69G-S3H
boards

>>>

Gallery

AMD 690G boards are usually in the mATX form factor. Gigabyte sees that it could do more if it is a ATX board, giving users more value. Indeed, this is the only board (based on AMD 690G) that spots a PCIex4 and PCIe x16 on the same board and supports CrossFire.

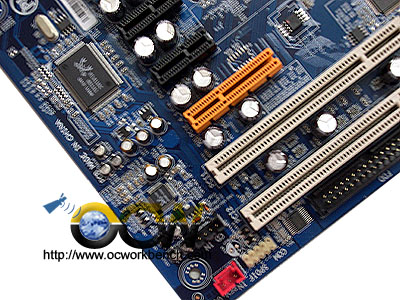

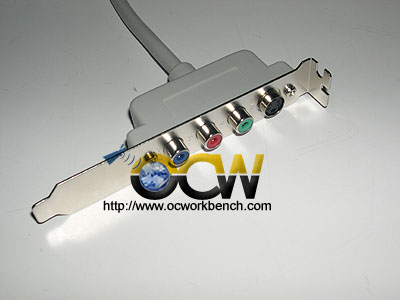

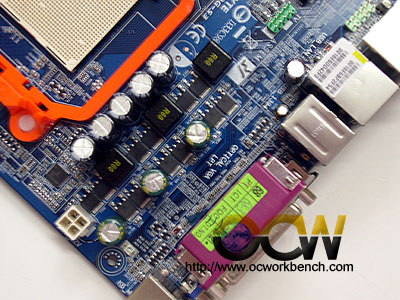

On further inspection of the board, we see that the board comes with another 2 PCI and 3 PCIe x1 slots. Behind the slots are the codec and GbE PHY. The TV-out connector is the one in green. It can be hooked up to the provided bracket for component and s-video out. A 3 phase power design is spotted. To its right is the 4 pin aux power.

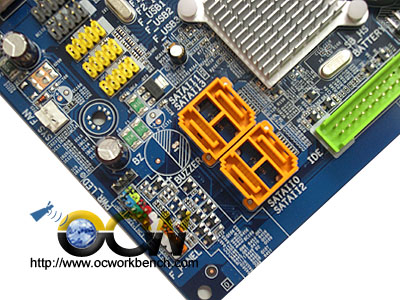

At the bottom left, we can see the 1394 and USB external connectors, 4 SATA II ports with RAID 0,1,0+1 support, 1 and 1 channel of IDE supported by the SB600.

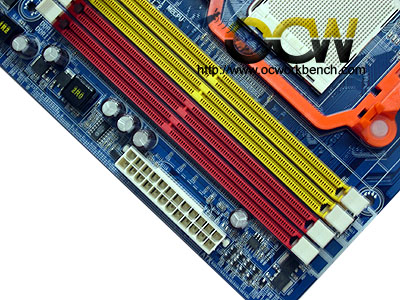

At the centre, we can see the CLK gen, there is also a 4 pin AUX for power connector on the right hand side of the board. The board uses a . On its right is a 3 phase design. To the right are 4 DIMM slots coded in yellow and red. The 24 pin power connector is rihgt below.

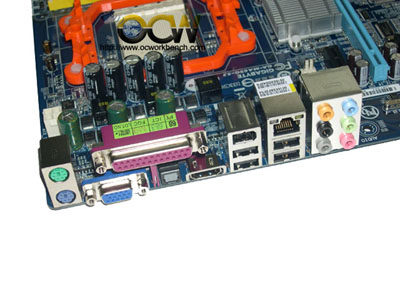

The back panel consists of PS/2 Keyboard and Mouse, 4 USB ports, 1 D-SUB, 1 x GbE LAN port, 1 HDMI, 1 1394 and 8 ch audio ports. There is also a S/PDIF digital out.
