The mainboard

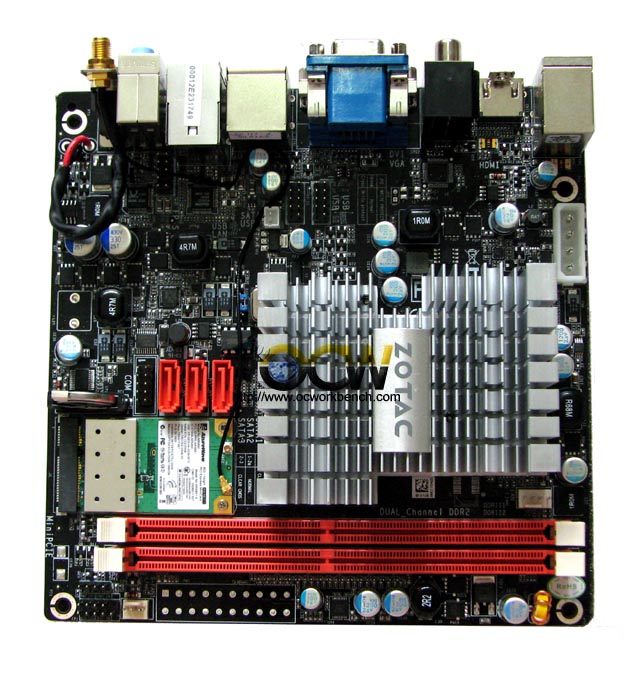

The mainboard is a mini-ITX form factor.
The board doesn't come with any PCIe slots. The board uses both Realtek GbE and
audio codec. There is also wireless 802.11n module by AzureWare.
In
terms of connectivity, the board has 2 DIMM slots and supports up to 4GB of
DDR2-667/800 (2 DIMMs). There are also 3 SATA II ports supporting RAID 0,1,0+1
and 1 eSATA. There is a total of 10 USB 2.0 ports (6 on back panel and 4 via pin
header). The board comes with onboard analog 5.1-channel high-definition audio
or 7.1-Channel LPCM digital audio (HDMI).

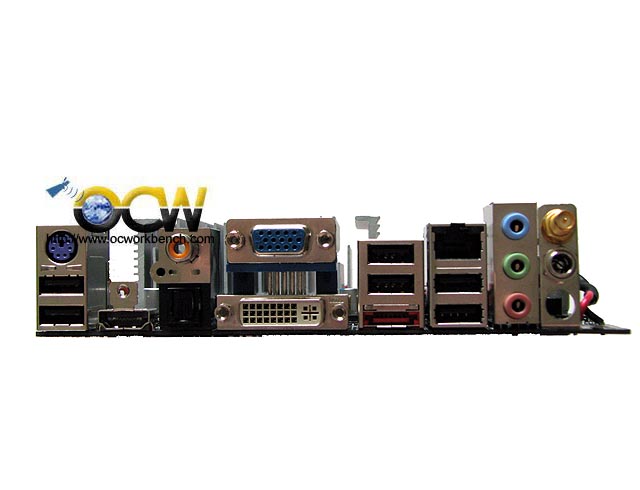

The backplane of the board shows the PS/2 Keyboard, 6 USB ports, 1 HDMI, 1
Coaxial, 1 digital S/PDIF, D-SUB, DVI, eSATA, audio ports, Wifi antenna port and
the Power port.
