ABIT BD7-II RAID i845E Gallery (1)
Overclocker 24 May 2002

The Mainboard

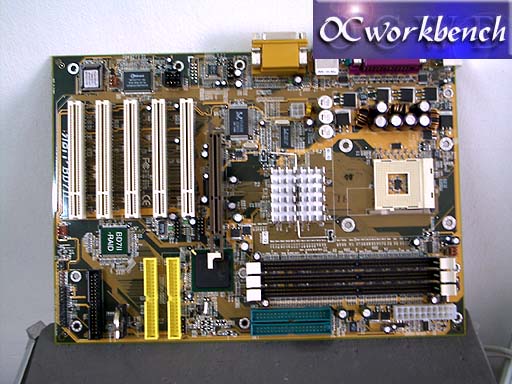

Neat Layout Mainboard - ABIT BD7II RAID

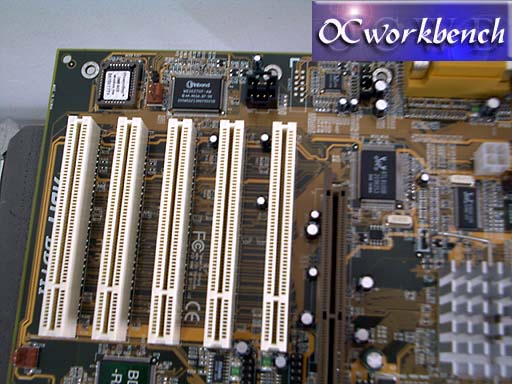

5 PCI, 1 AGP Slot is available. No CNR slot is on board.

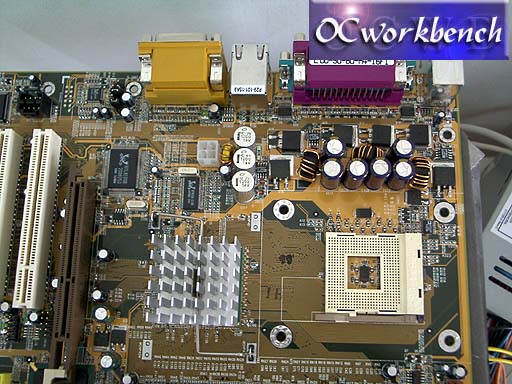

The Socket 478 with accompanying MCH under the silver heatsink

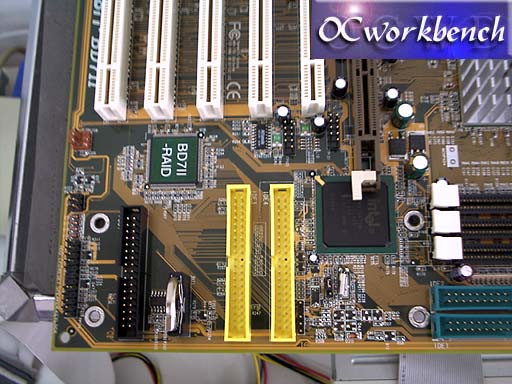

Floppy connector (black), 2 ATA-133 RAID connectors (yellow).

3 DDR DIMMs support for up to 2GB of high-speed DDR memory and 2 IDE ATA100 Channels (Green colour). Power connector on the right corner of the board
