Shuttle SS51 P4 Barebone System Gallery (4)
Overclocker 24 Jul 2002

How to install external AGP card

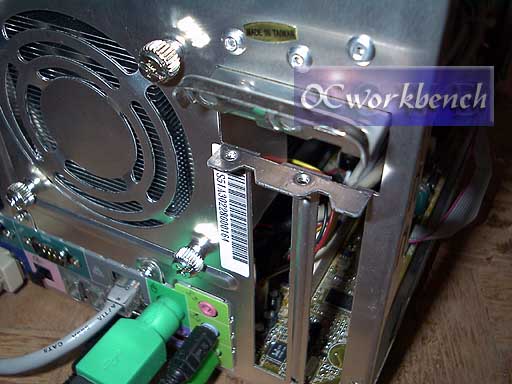

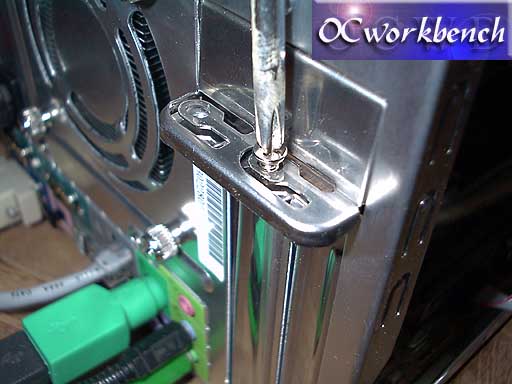

Unscrew the two PCI Slots

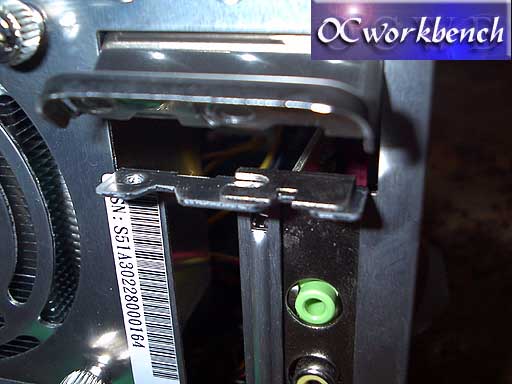

After that remove the PCI metal strips. There is a latch on top and it can be opened by pulling it outwards

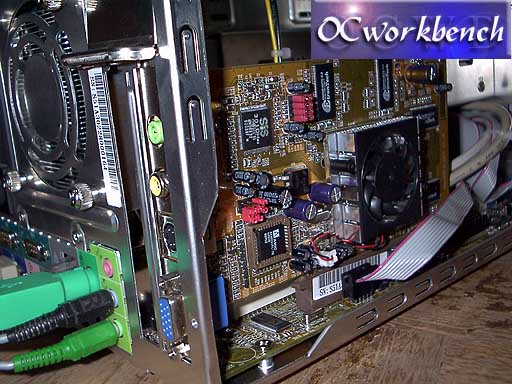

A Xabre 400 is inserted and fitted into the AGP Slot

After fitting in the graphics card, push the retention clip back in position to fasten the inserted AGP card using a screw

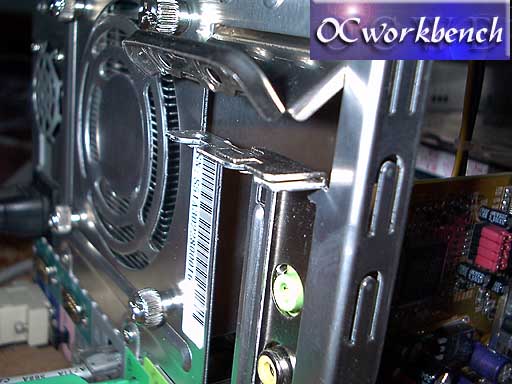

Another close up shot on clip

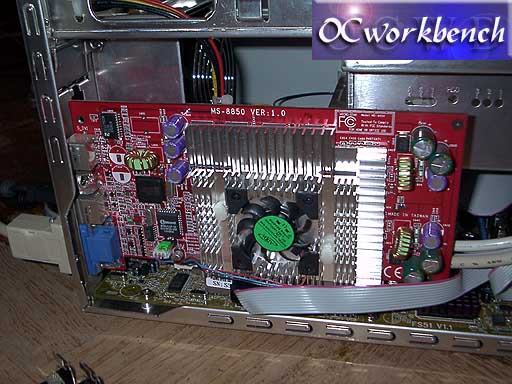

We tried installing the GF3 Ti200 and Xabre 400 cards into the machine with ease

Benchmark Results
