M1687 K8 Ref BoardGallery (2)
Bluetooth 1 Sept 2003

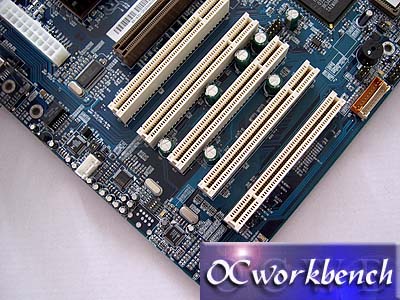

1 ACR, 4 PCI and 1 AGP slot. The South Bridge
supports the Secure Digital and Memory Stick interfaces which can be seen on
the right rear of the photo.

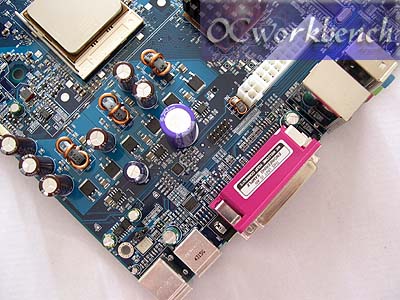

The board uses a 3 phase design and we can see
a AUX 12v and the standard p4 type of connector for powering up this system

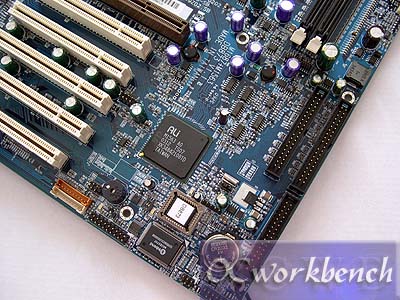

The ALi South Bridge supports dual channel of
IDE, SD, MS, USB 2.0 etc. The current implementation on this reference board
does not include a SATA/IDE RAID chipset.

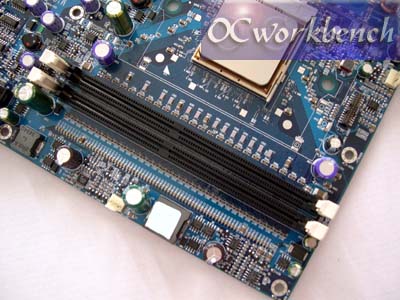

2 DIMM slots supporting up to 2GB of
unbuffered DDR400/333/266/200.
