 Gigabyte K8VNXP VIA K8T800 Mainboard Gallery (2)
Overclocker 21 Sept 2003

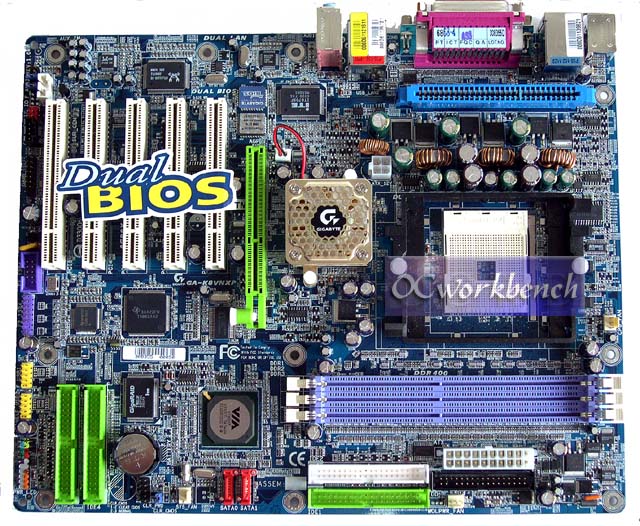

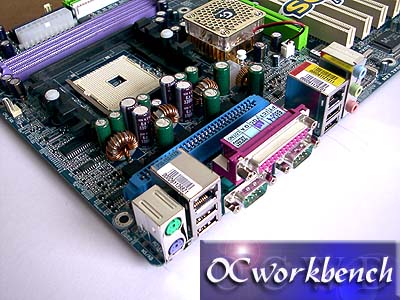

5 PCI slots and 1 AGP slot. ITe I/O controller chip ITE I/O IT8712F-A. Realtek ALC658 CODEC for 6 ch audio. Two Realtek LAN chipset for Dual Gigabit LAN The Socket A, DPS slot, heatsink for the north bridge. A 3 phase design is implemented. +12v connector

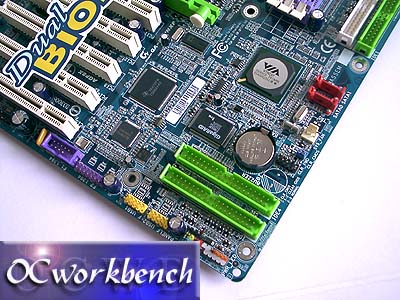

On the side of the board are connectors for 1394 ports, USB brackets. The green coloured IDE ports are the IDE RAID supported by the GigaRAID chipset. The two Red SATA ports are supported by the SiliconImage SATA chipset.

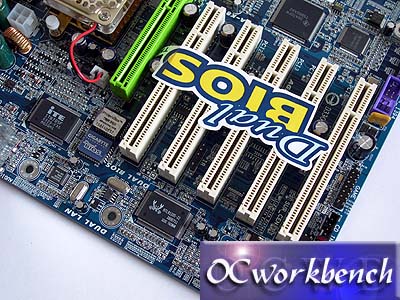

There is Dual BIOS on this  board for maximum protection+ when flashing the wrong BIOS occurs.

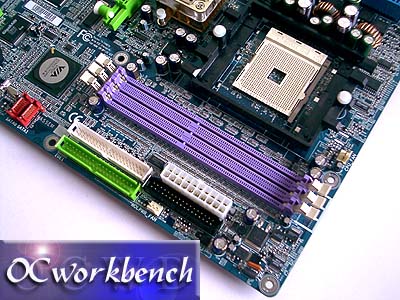

3 DIMM slots supporting up to 3GB of DDR266/DDR333/DDR400 using 184pin unbuffered DDR.

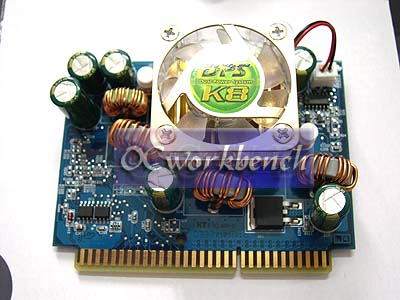

DPS Unit Dual Power Sysytem K8 (DPS K8). Specially designed for AthlonTM64 platform, the Dual Power System delivers a total of 6-phase power circuit to provide more solid and durable power supply for the new generation AMD platform. SATA bracket for connecting to the on board SATA connectors so that HDD can be connected outside the PC casing using SATA.
