775Dual-880Pro (VIA PT880 Pro) Intro

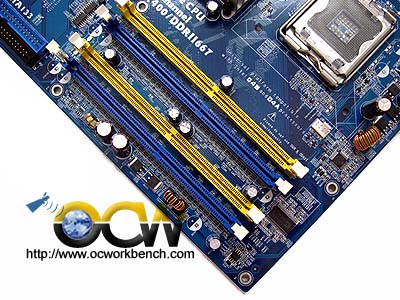

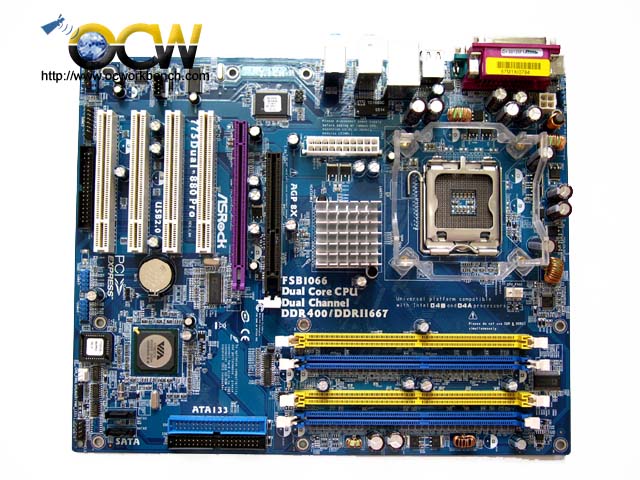

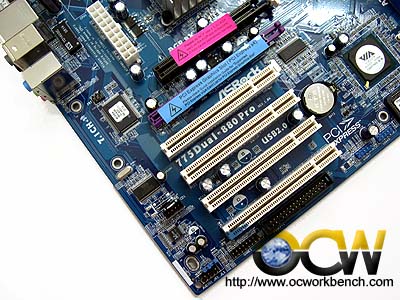

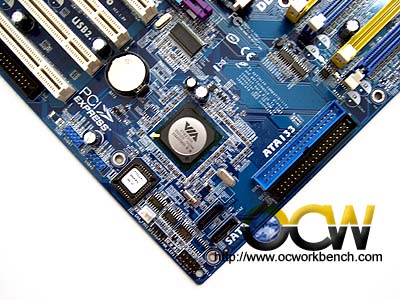

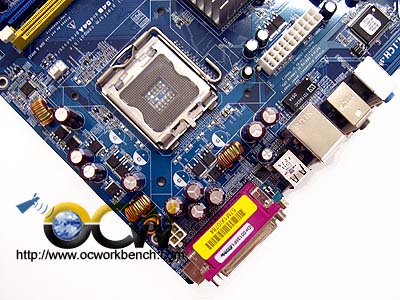

The board comes with 4 PCI, 1 PCIe x 4, 1 AGP 8x slot. Towards the centre, we see the power connector and the North Bridge PT880 with a passive heatsink. Right behind the slot is the Realtek ALC850 audio codec and VIA Ethernet PHY VT6103. Furtherdown, we see 4 rows of DIMM slots. The yellow coloured is the DDR2 (max 2GB) slots and the blue colour slots are the DDR (max 2GB) slots. Further to the left, we see the BIOS, 2 SATA slots supporting RAID 0,1,0+1, JBOD supported by 8237R south bridge.
