ECS PF88 SiS 656 Mainboard and SIMA A9S SiS 756 upgrade card Intro 3/6
Bluetooth 16 May 2005

Chipsets on PF88

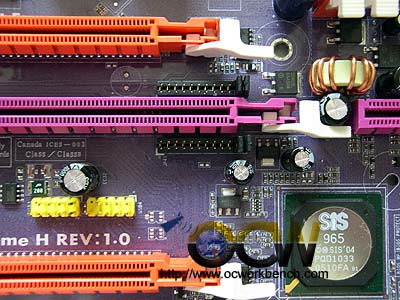

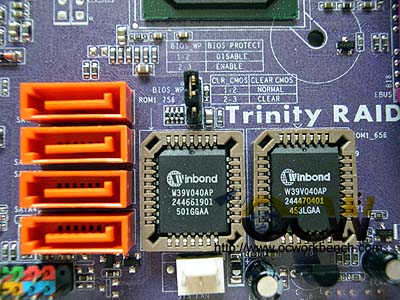

One BIOS for LGA775 and the other meant for upgrade slot A9S	SiS 965 South Bridge and two rows of jumpers next to the Elite bus (purple slot) which must be extracted to use with the SIMA A9S for K8 operation.

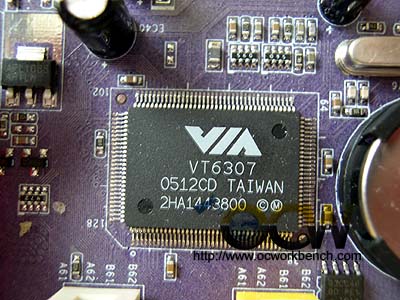

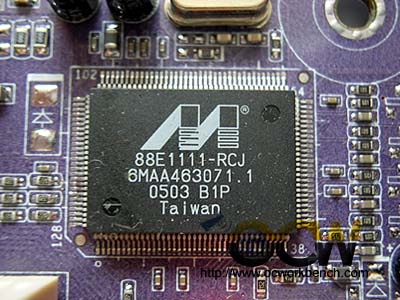

Marvell 88E1111-RCJ GbE PHY	VIA VT607 1394a supporting chipset

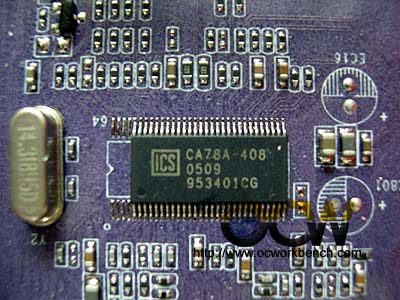

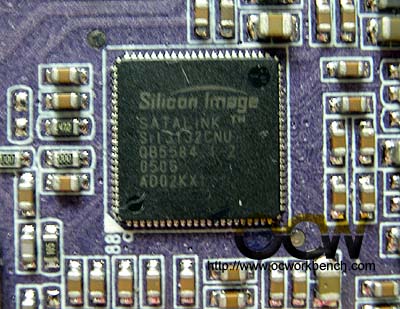

ICS Clock Gen	SiliconImage Sil 3132 SATA II (3.0Gbps)+ NCQ controller running off PCI-E x1 supports 2 ports SATA

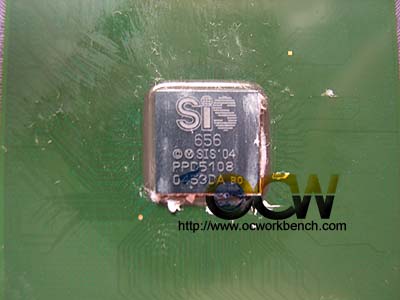

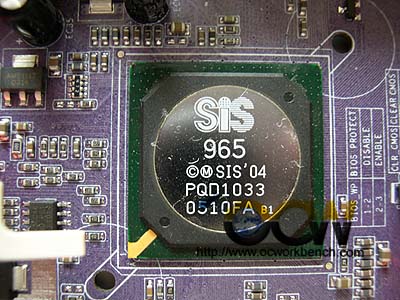

SiS 656 North Bridge	SiS 965 South Bridge
