ASRock 4CoreDual-VSTA Review Intro 2/5
Bluetooth 16 Nov 2006

 Pricing of
775Dual-VSTA

>>>

Gallery

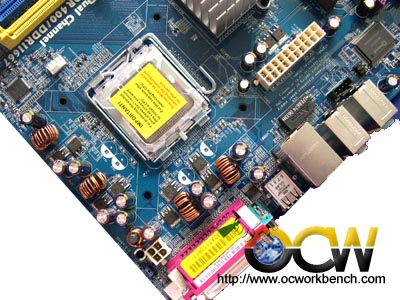

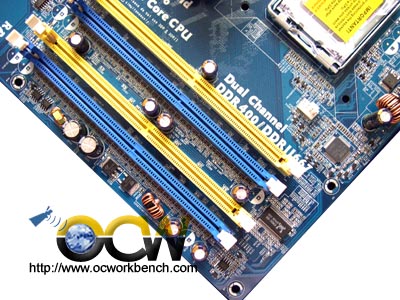

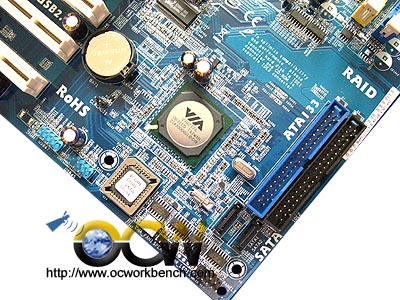

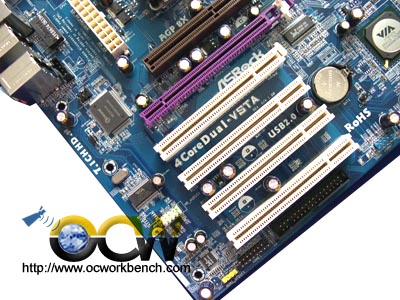

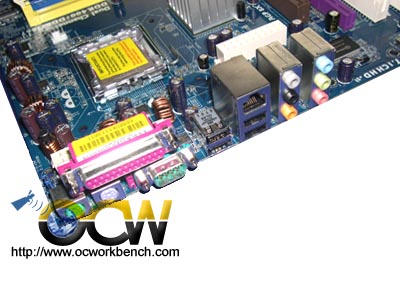

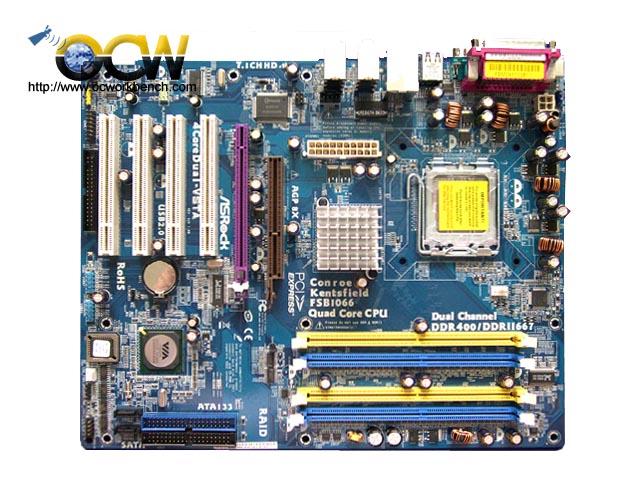

The board comes with 4 PCI, 1 PCIe x 4, 1 AGP 8x slot. Towards the centre, we see the power connector and the North Bridge PT880 Ultra with a passive heatsink. Right behind the PCI slots are the Realtek ALC888 audio codec with HDMI_SPDIF header and VIA Ethernet PHY VT6103. Furtherdown, we see 4 rows of DIMM slots. The yellow coloured  is the DDR2-533/667 (max 2GB) slots and the blue colour slots are the DDR400 (max 2GB) slots. Further to the left, we see the BIOS, 2 IDE, 2 SATA connectors supporting RAID 0, RAID 1, and JBOD and Hot Plug functions.
