ASRock 4Core1333-eSATA2 Intel P31 Mainboard Review Intro 2/4
Bluetooth 6 Sept 2007



 Pricing of
ASRock ConRoe1333-DVI/H

>>>

Gallery

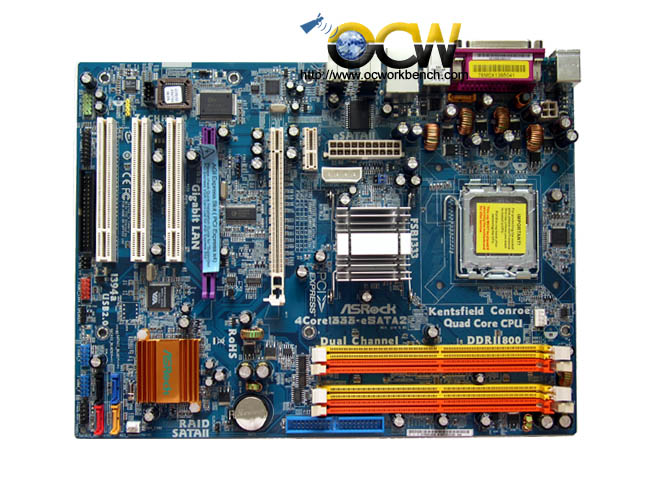

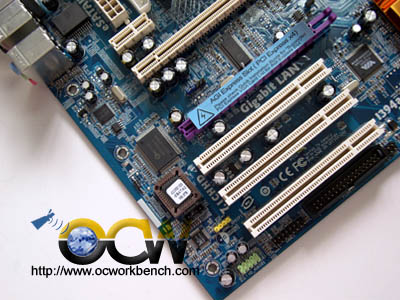

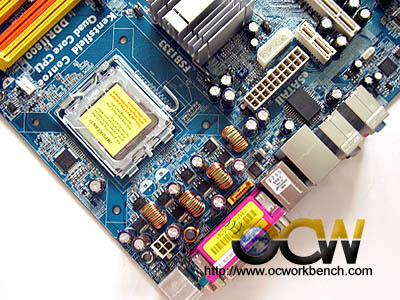

The board comes with 3 PCI, 1 PCIe x 1 and 2 PCIe full length slot. On the top left corner of the board, you will see the Realtek HD audio Codec and PCIe based GbE controller. At the centre is the 20pin power connector and the I/O controller. To its right is a 4 phase power with a 4 pin AUX power. The LGA socket has good clearance for mounting different kinds  of heatsinks.

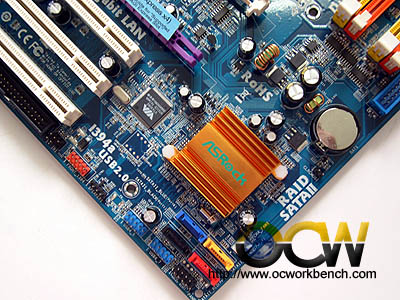

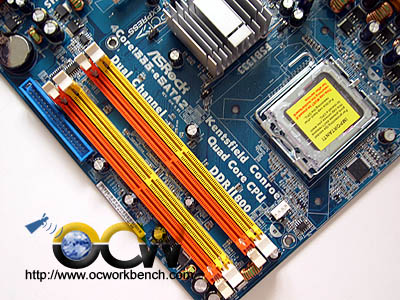

At the bottom left corner you will see the 4 SATA II connectors controlled by the ICH7R south bridge. Just above it are external connectors for USB brackets. On the right are 4 DDR2 DIMM slots supporrting up to 4 pc of DDRII800 Total memory supported : 4 GB

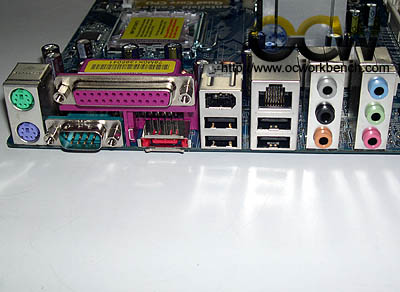

On the back panel, you will find the PS/2 Keyboard and Mouse, LPT1 port, COM 1, eSATA 4 USB, 1 1394, 1 GbE  and 7.1 ch audio ports. eSATA is supported by cabling up the yellow connector on the South bridge with the connector right behind the parallel port.
