Specifications of the mainboard ALIVENF7G-HDREADY
Bluetooth 14 Jun 2007

Pricing of AMD 690G
boards

>>>

Gallery

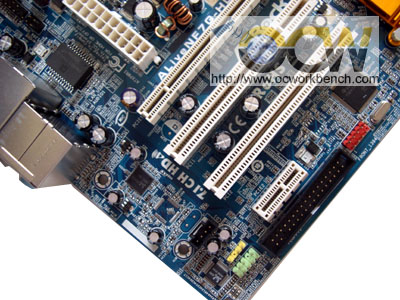

Starting from the left hand corner, we see the audio codec. The yellow pin is the HDMI audio in. To its right is the GbE chip right behind the PCIex16 slot.

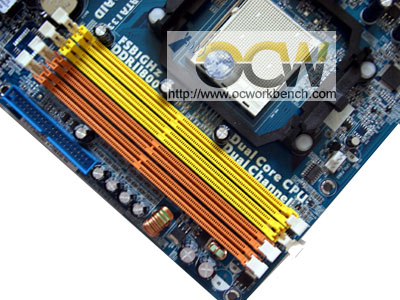

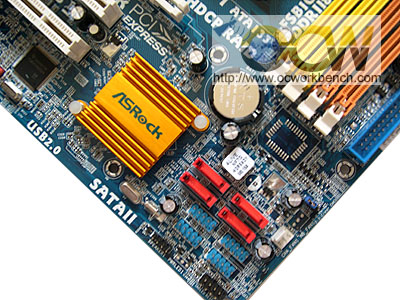

At the bottom left, we can see the USB external connectors, 4 SATA II ports with RAID 0,1,0+1,5 supported by the single chipset MCP68 (GEFORCE 7050-630A). To its right is a single chanel of IDE and 4 DIMM slots supporting up to 8GB of DDR2-800.

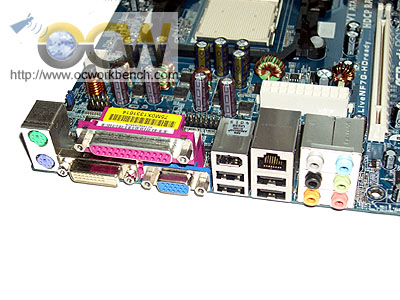

The back panel consists of PS/2 Keyboard and Mouse, 1 LPT, 4 USB ports, 1 1394, 1 GBE, 1 D-SUB, 1 DVI-D and 8 ch audio ports.
