ASRock ConRoe1333-D667 945GC A2 Mainboard Review Intro 1/4
Bluetooth 16 May 2007

 Pricing of
ASRock ConRoe1333-DVI/H

>>>

Introduction

ASRock has been known for its budget yet innovative boards. Today, we take a look at their newly released board, the ASRock ConRoe1333-D667. This is the little brother of the ConRoe1333-DVI/H.

ConRoe1333-D667 supports the LGA 775 for Intel® Dual Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D processors. The board is based on the Intel® 945GC A2 Chipset which is compatible with all FSB1333/1066/800/533MHz CPUs except Quad Core. The 945GC A2 chipset comes with Intel® Graphics Media Accelerator 950 which supports Pixel Shader 2.0, DirectX 9.0. It can support up to a Max. shared memory 224MB.



In terms of expansion, this board supports Dual Channel DDRII667/533 x 2 DIMM slots with max. capacity up to 4GB. The board also has 1 x PCI Express x16 slot for external VGA card. For disk access, there are 4 x Serial ATAII 3.0 Gb/s connectors. Other than that there is 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec), 10/100 Ethernet LAN.  HD 8CH I/O: 4 ready-to-use USB ports, HD 7.1 channel audio jacks. The board is Windows® Vista™ Premium 2007 Logo Ready

For overclockers, ASRock throws in the hybrid Booster - Safe Overclocking Technology
Untied Overclocking : During overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses.

Just like the ConRoe1333-DVI/H we reviewed a month ago, when running 1333FSB CPUs, the PCIe clk is running at 115MHz (OC).






Specs

General
CPU - LGA 775 for Intel® Dual Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D
- Compatible with all FSB1333*/1066/800/533MHz CPUs except Quad Core
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU


*FSB1333-CPU will operate in overclocking mode. Under this situation, PCIE frequency will also be overclocked to 115MHz.
Chipset - Northbridge: Intel® 945GC A2
- Southbridge: Intel® ICH7
Memory - Dual Channel DDRII memory technology
- 2 x DDRII DIMM slots
- Supports DDRII 667/533
- Max. capacity: 4GB*


*Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP, Windows® XP 64-bit, Windows® Vista™ and Windows® Vista™ 64-bit.
BIOS - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
 Audio, Video and Networking
Graphics - Intel® Graphics Media Accelerator 950
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 224MB
Audio - 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN - Realtek PCIE x1 LAN 8101E
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
 Expansion / Connectivity
Slots - 2 x PCI slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 1 x HDMR slot
Connector - 4 x Serial ATAII 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O HD 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Hybrid Booster - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

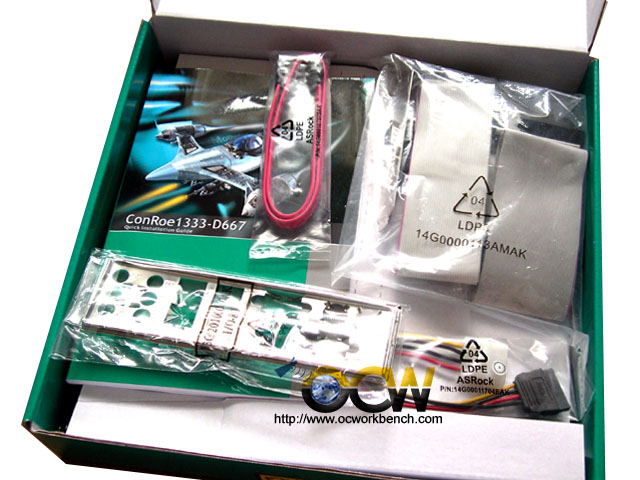

Accessories - Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 100 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x COM port bracket
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor - Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm
OS - Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications - FCC, CE, WHQL
