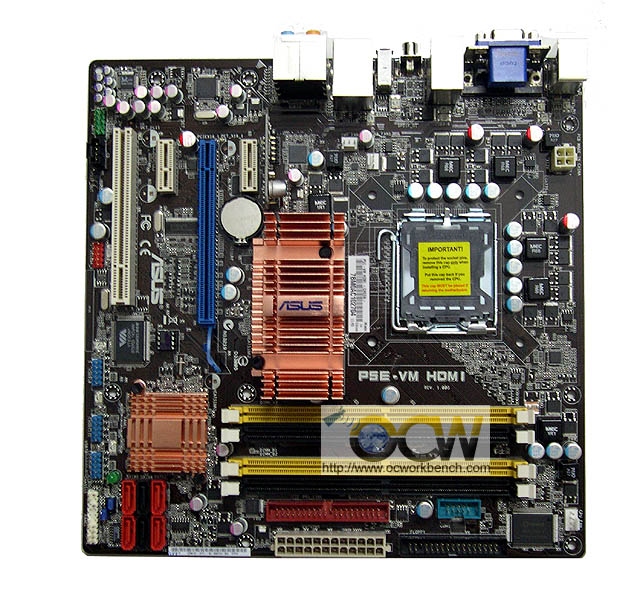

The board supports 4 x DIMM, max. 8GB, DDR2 800 / 667 MHz, non-ECC, un-buffered memory

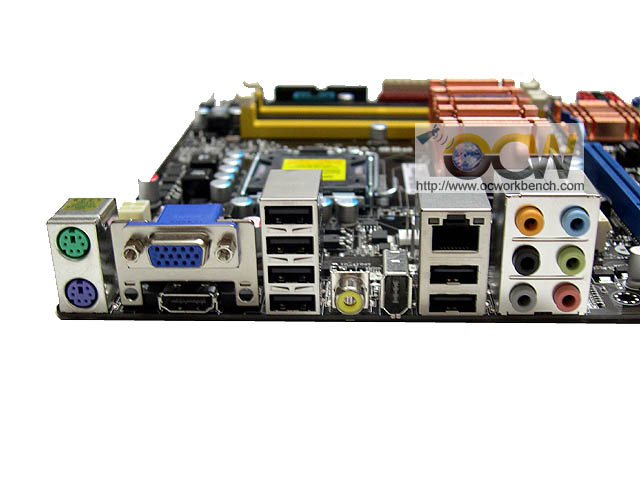

Dual channel memory architecture. It has 1 x PCI-E x16, 2 x PCI-E x1 and 1 x PCI slot. The board also sports 6 SATA II 3.0Gb/s slots with support of RAID 0,1,5,10 (Intel matrix storage technology). The board also incoporates a Jmicron JMB368 PATA/SATA controller, a LAN Atheros L1 PCI-E Gigabit LAN controller, Realtek ALC 883, 8-channel High-Definition Audio. There is also support for 1394 using IEEE 1394 VIA VT6308P controller supports 2 x IEEE 1394a ports (one at midboard; one at back panel). HDMI port is also found at the back panel.
