Gigabyte GA-G33M-DS2R Intel G33 Mainboard Review Intro 2/6
Bluetooth 19 Jul 2007

Pricing of
Gigabyte GA-G33M-DS2R

>>>

Gallery

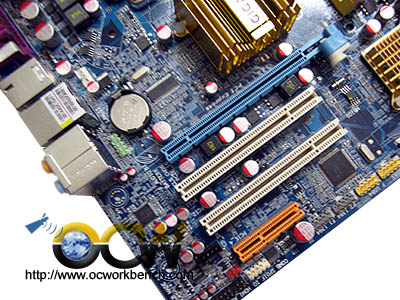

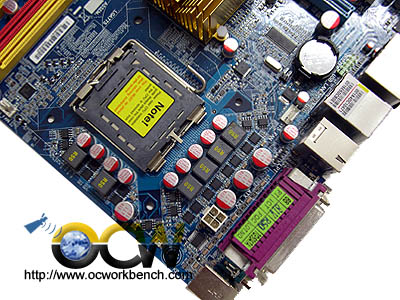

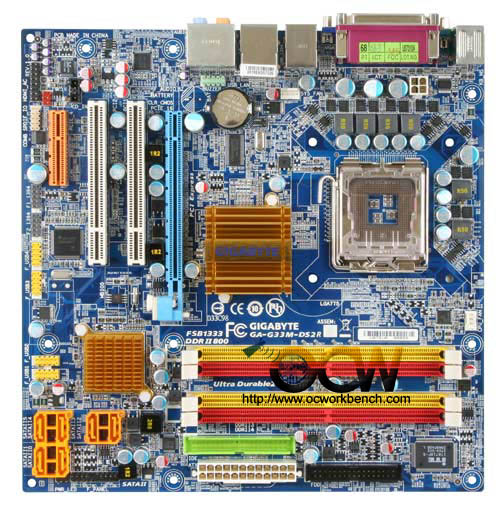

The mATX board comes with 1 PCIe x4, 2 PCI, 1 PCIe x16. On the top left corner of the board, there are connectors for S/PDIF. you will see the Realtek HD audio Codec and GbE PHY on its right. The TI 1394 controller is next to the PCI slot. Next to it on the left side is the 1394 connectors (for external brackets) and USB connector (for external brackets). At the centre is the North bridge. Nex tto it is the CPU socket with Low RDS(on) MOSFET surrounding it.

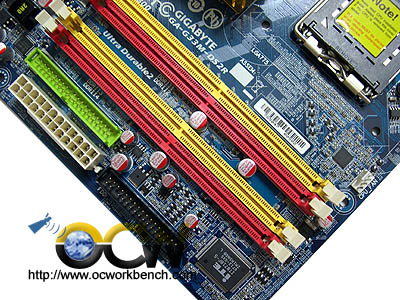

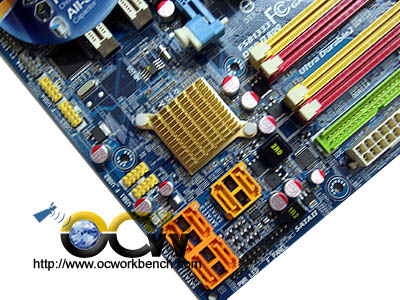

At the bottom left corner you will see the 6 orange SATA II connectors supported by ICH9R. To its right is 4 DDR2 slots supporting DDR2-800 (up to 8GB in total). Below it is the IDE connector and 24 pin power and floppy connector

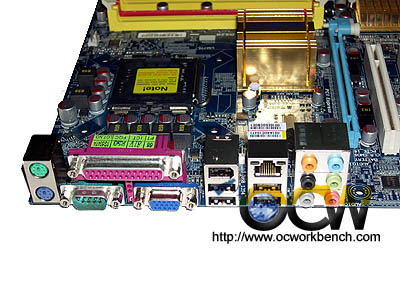

On the back panel, you will find the PS/2 Keyboard and Mouse, LPT1 port, D-SUB, 4 USB, 1 1394, 1 GbE and 7.1 ch audio ports.
