Jetway 965GDAG  (G965) Core 2 Duo Mainboard Intro 2/5
Bluetooth 15 Feb 2007

Pricing of G965 >>>

Gallery

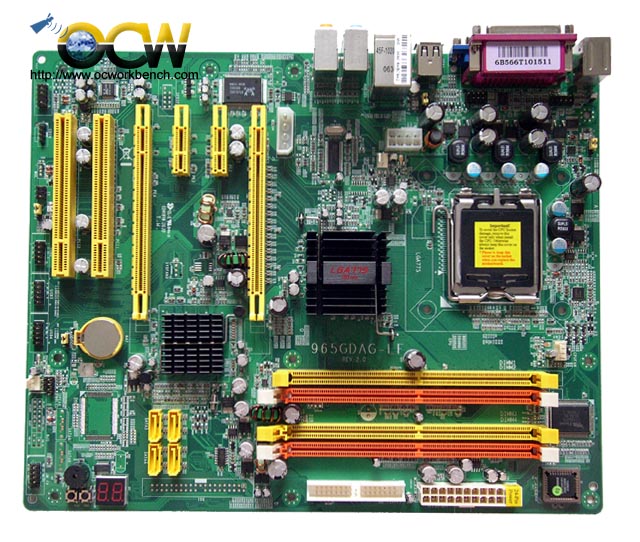

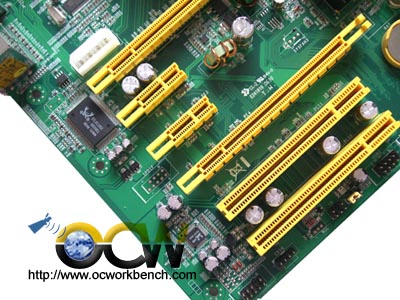

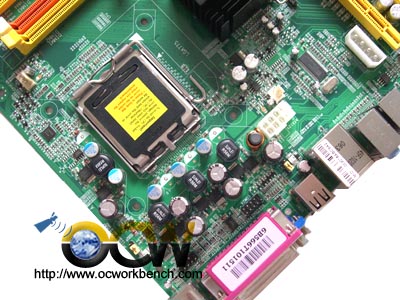

The board layout looks like the typical Jetway design. Green PCB with yellow PCIe/PCI slots. On the top of the mainboad, we can see the Audio codec, the GbE PHY and the panel connectors at the back of the board. There are 2 PCI, 2 full size PCIe slots, one at 4x while the other at 16x. There is a AUX power if you intend to use 2 graphics cards. To the right is the 3 phase power design power regulator circuit.

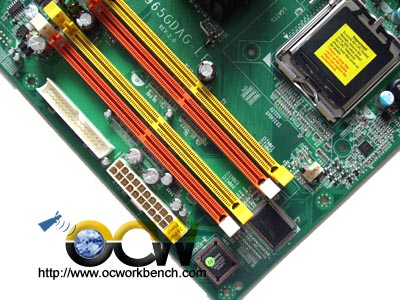

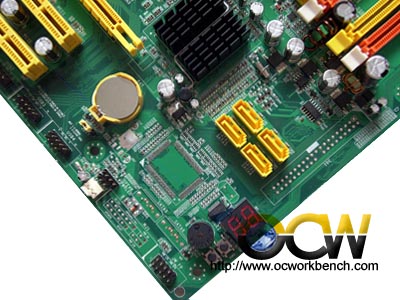

On the left are connectors for external USB brackets. Next to it is the CMOS battery and the South bridge. 4 SATAII ports and 1 IDE is supported by the south bridge. There is also a power switch and reset switch on the left hand bottom corner of the PCB. Next to it is a DEBUG LED. As it comes with a single IDE channel, JETWAY provided a marvell chipset SATA->IDE converter in the package, you can use that to hook it up to your HDD or CDROM drive. There are 4 Dimms support DUal Channel DDR2-800 onboard.

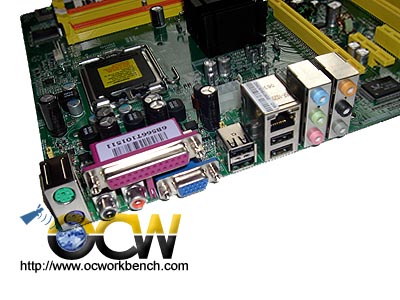

On the rear of the mainboard, we will find the usual ps/2 keyboard/mouse, VGA, SpDIF in and out, 4 USB, 1 GbE, and 8 ch audio ports.
