ASRock X58 Extreme Intel X58+ICH10R
Core i7 Mainboard
Review - BIOS Screen shots
1
Bluetooth 29 Jun 2008
BIOS 1
The screen shots are taken with board installed with a Intel Core
i7 965 (3.2GHz).
|
|
|
 |
 |

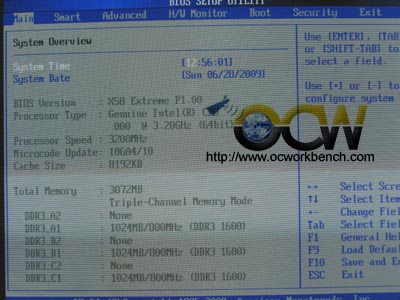

| Main bios screen shot showing
the CPU used, memory used on board. BIOS is P1.00 |

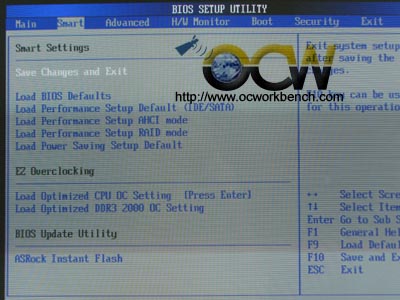

Under Smart BIOS, you can now
simply load the Performance or Power Saving defaults. The settings are
already optimised for the respective scenarios. You can also use EZ
overclocking to load factory optimised settings for oc speeds or for
DDR3-2000 settings. There is a ASRock instant Flash option for you to flash
the BIOS by auto searching for the bios file in attached USB, eSATA or HDD |
 |
 |

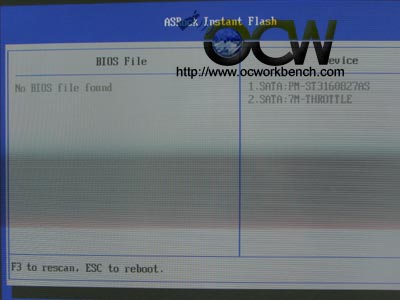

| Here is how Instant Flash
looks like. It will auto search the SATA drives for the BIOS file to be
flashed. |

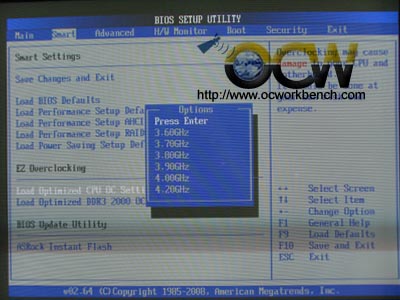

For CPU OC setting, the
default ranges available are shown when the option is chosen. |
 |
 |

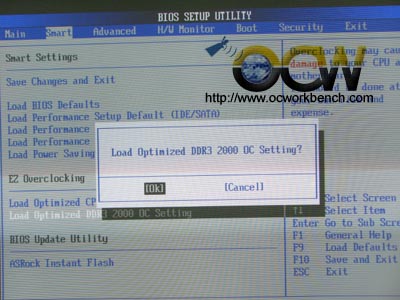

| Alternatively, you can choose
to load optimised DDR3-2000 setting. High end ram modules may work with this
option |

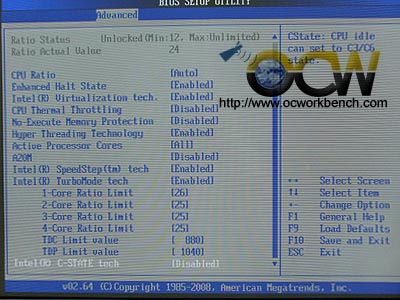

Other options available for
tweaking. CPU Ratio(multipier), enhanced halt state etc. |
