BIOS Screen shot 2 of ASRock H55M Pro mainboard
Bluetooth 3 Jan 2010

BIOS 2

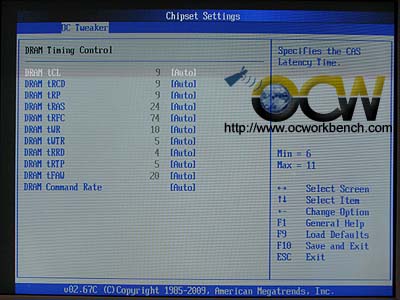

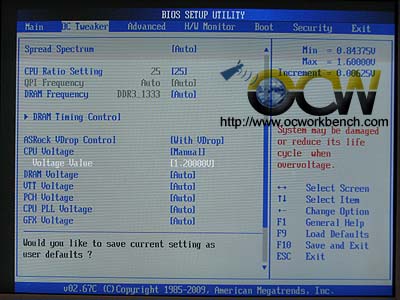

In Chipset settings, you can manually change the ram timings	CPU voltage can be adjusted, from 0.04375v to 1.60v

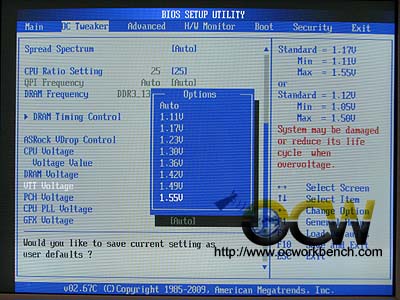

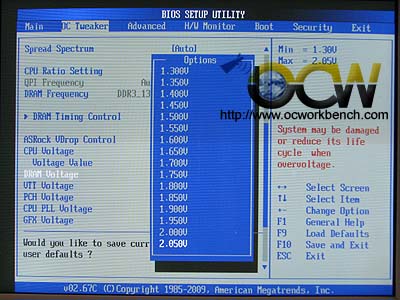

DRAM voltage 1.30 - 2.05v	VTT can be set too from 1.11v to 1.55v

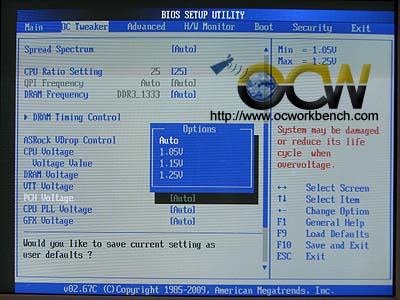

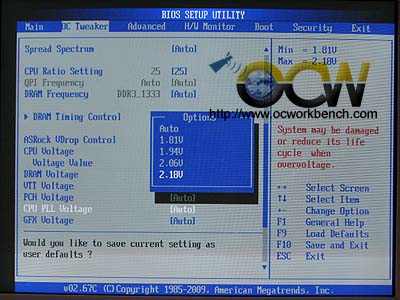

PCH voltage can be set from 1.05, 1.15 and 1.25v	CPU PLL voltage range 1.01v to 2.18v

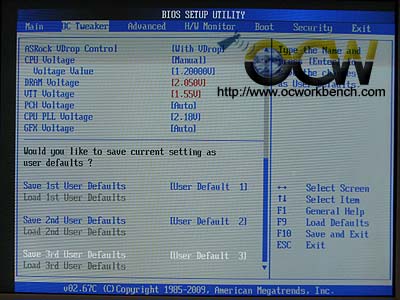

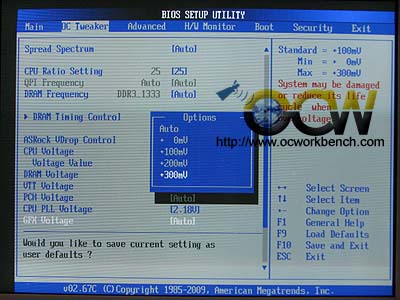

GFX voltage can be adjusted too by adding up to 300mV	You can save 3 profiles for future use or reference.
