ABIT AT7 Max2 KT400 Gallery (2)
Overclocker 26 Sept 2002

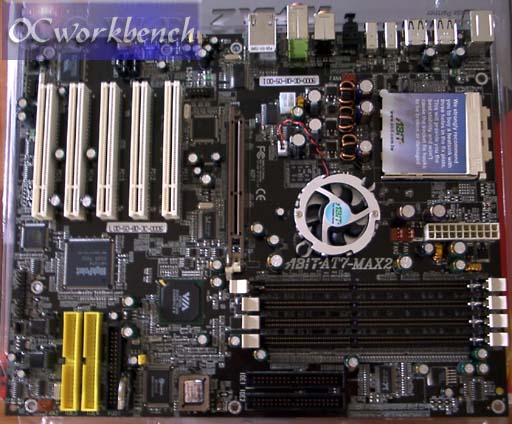

Full View of the AT7 Max2 mainboard

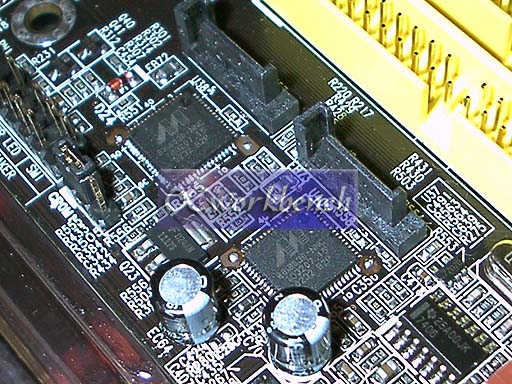

On board Marvel88i8030 Controller x 2 to support SATA data transfer rates 150 MB/s (1.5G bps).

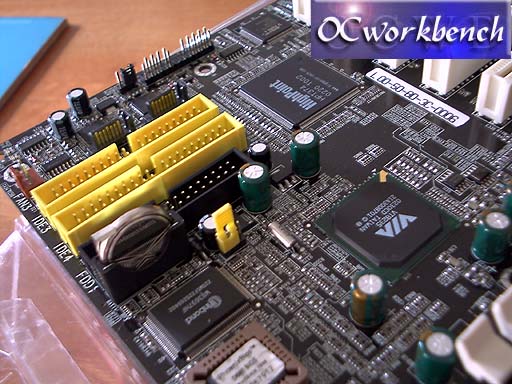

2 channels of ATA133 RAID are supported, the other two channels are converted to SATA (so SATA RAID is possible)

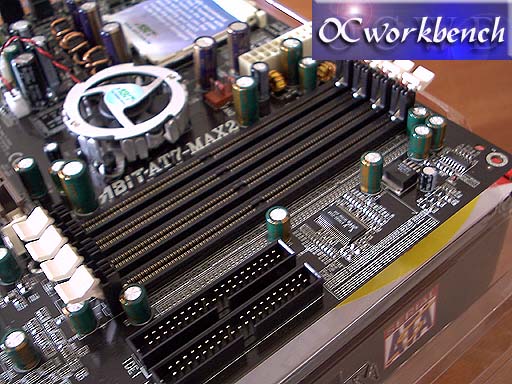

4 DDR DIMM Slots supporting PC2100, PC2700 or PC3200 DDR module.
Supports 2 DIMM DDR 333/400 (Max. 2GB) or
3 DIMM Un-buffered DDR 200/266 (Max. 3GB) or
4 DIMM Registered DDR 200/266 (Max. 3.5GB)

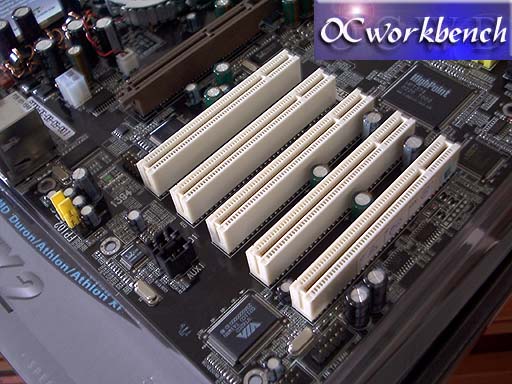

5 PCI Slots and 1 AGP slot
